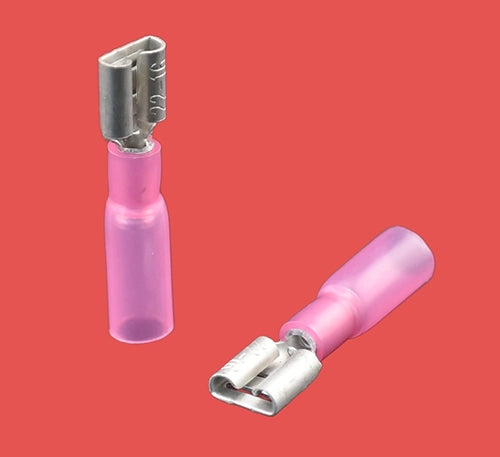

• Red heat shrink female spade connectors – waterproof insulated terminals for 22–16 AWG wires

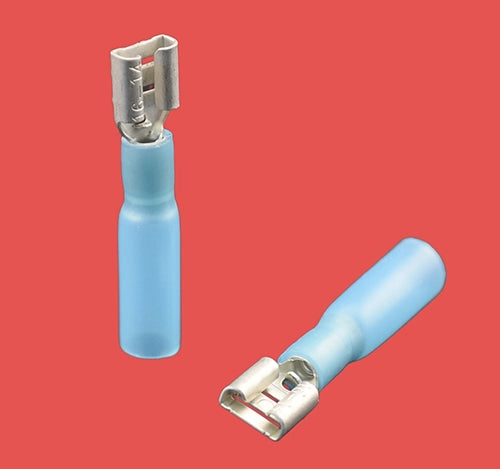

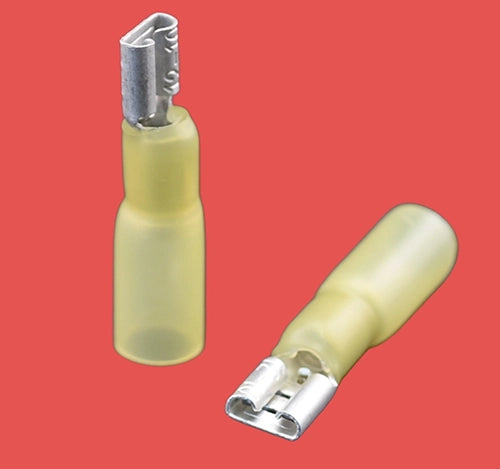

  • Assorted heat shrink female spade connectors – red, blue, and yellow insulated terminals for secure electrical connections
1 2

heat shrink female spade connectors

heat shrink female spade connectors

prices shown are ex VAT, packs of 100 (1 unit = 100 pcs)

£11.98
£11.98
Sale Sold out
Shipping calculated at checkout.

Discounts will appear below after you make your size/colour selections

JCTHSRFS63

Tech Specs

All terminals come in packs of 100
Material composition: brass, tin, polyethylene & copper
Shrinkable temperature:: +125°C to 180°C
Operating temperature: -45°C to +125°C
Max. voltage rating: 600V

Delivery

Delivery

Standard Delivery for mainland UK postcodes (excluding N Ireland, Scottish Highlands):

Orders Under £25.00 £7.95 +VAT to all UK postcodes
Orders From £25.01 - £75.00 £6.95+VAT to all UK postcodes.
Orders Over £75.00 Free of Charge to all UK postcodes.

Special Delivery Options & N Ireland, Scottish Highlands and Non Mainland UK postcodes:

Next Working Day delivery £9.50+VAT to Mainland UK excluding Scottish Highlands.

Delivery to off shore Islands and Scottish Highlands with a UK Postcode is £30.00+VAT.

Delivery Notes:

1pm is the cut off point for Next Day deliveries.


Please note that Printed Cable Ties have a 2 to 4 week lead time, so next day delivery will apply only once the cable ties are printed.

Tracking:

Tracking details will be emailed to you once your order has shipped.

View full details

Pack Size: 100 Heat Shrink Female Spade Connectors

Our heat shrink female spade connectors — also known as heat shrink push-ons or spade crimps — provide a durable, water-resistant solution for electrical terminations in automotive, marine, and industrial settings.

Key Features:

🔗 Waterproof and Reliable
Lined with hot melt adhesive, these terminals shrink to form a watertight seal, protecting against moisture, vibration, and corrosion.

🟥🟦🟡 Colour-Coded for Easy Identification

  • Red: 0.5–1.5mm² (22–16 AWG)

  • Blue: 1.5–2.5mm² (16–14 AWG)

  • Yellow: 4.0–6.0mm² (12–10 AWG)

⚙️ Durable, High-Conductivity Build
Constructed from tin-plated copper for excellent conductivity and corrosion resistance.

🧰 Easy Crimping & Sealing
Polyethylene insulation offers flexibility and strong mechanical support during crimping.

🌡️ Temperature Range

  • Operating: -45°C to +125°C

  • Shrink Activation: +125°C to 180°C

⚡ Voltage Rating
Up to 600V
