Pack Size: 100 Insulated Pin Crimps

Our insulated pin crimps – also called insulated pin terminals or pin connectors – are ideal for fast, secure wire connections, especially where wires are inserted into terminal blocks or connectors.

Key Features:

• 🔌 Reliable Electrical Connections
  Designed to simplify insertion into screw or spring clamp terminals while preventing wire strand fraying.

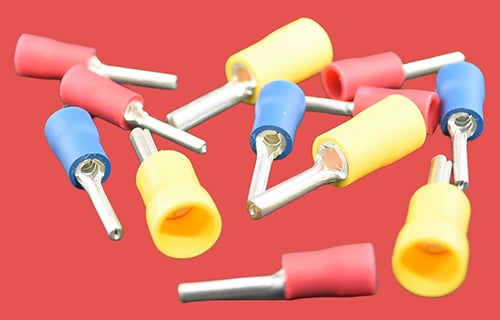

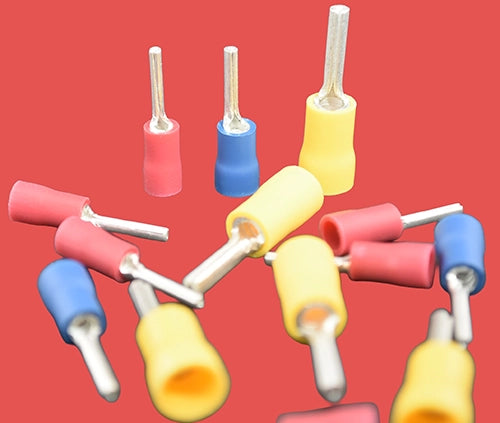

• 🟥🟦🟡 Colour-Coded for Easy Identification

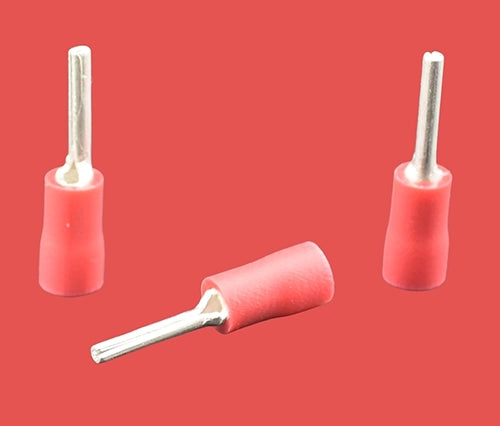

  • Red: 0.5–1.5mm² (22–16 AWG)

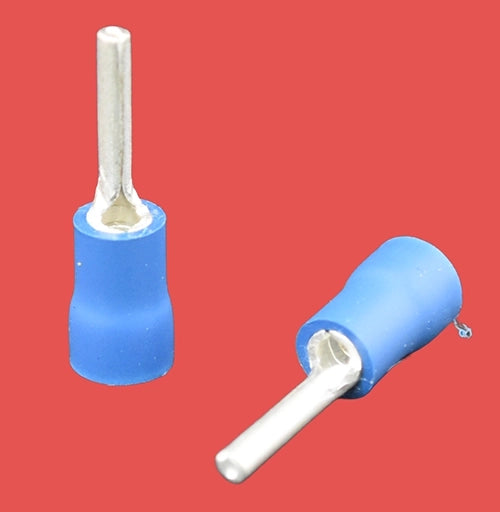

  • Blue: 1.5–2.5mm² (16–14 AWG)

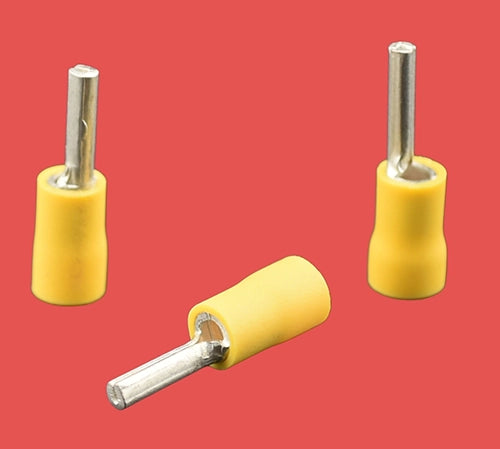

  • Yellow: 4.0–6.0mm² (12–10 AWG)

• 🧰 High-Grade Vinyl Insulation
  Durable insulation supports fast, reliable crimping and protects the connection.

• ⚙️ Copper Core, Tin-Plated Finish
  Made from high-conductivity copper, tin-plated for superior corrosion resistance.

• 🌡️ Temperature Range:
  Operates between -10°C and +75°C.

• ⚡ Voltage Rating:
  Rated for up to 600V usage.

Bulk Discounts Available

Sold in packs of 100, with automatic savings on orders of 10+ and 100+ packs.
