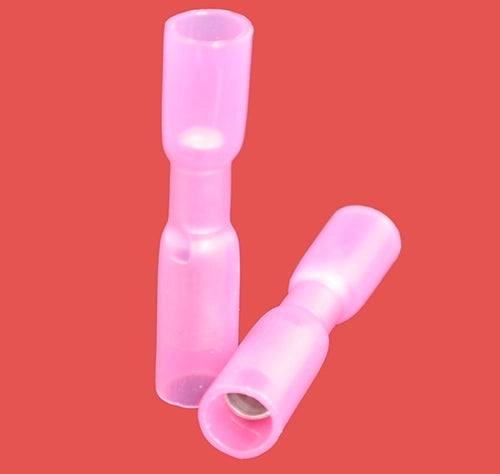

• Red heat shrink female bullet connectors for 0.5–1.5mm² wire sizes.

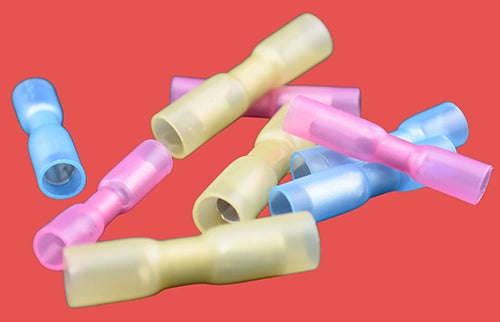

  • Assorted heat shrink female bullet connectors in red, blue, and yellow.
1 2

Heat Shrink Female Bullet Connectors

Heat Shrink Female Bullet Connectors

prices shown are ex VAT, packs of 100 (1 unit = 100 pcs)

£14.29
£14.29
Sale Sold out
Shipping calculated at checkout.

Discounts will appear below after you make your size/colour selections

JCTHSRBR40

Tech Specs

All terminals come in packs of 100
Material composition: brass, tin, polyethylene & copper
Shrinkable temperature:: +125°C to 180°C
Operating temperature: -45°C to +125°C
Max. voltage rating: 600V

Delivery

Delivery

Standard Delivery for mainland UK postcodes (excluding N Ireland, Scottish Highlands):

Orders Under £25.00 £7.95 +VAT to all UK postcodes
Orders From £25.01 - £75.00 £6.95+VAT to all UK postcodes.
Orders Over £75.00 Free of Charge to all UK postcodes.

Special Delivery Options & N Ireland, Scottish Highlands and Non Mainland UK postcodes:

Next Working Day delivery £9.50+VAT to Mainland UK excluding Scottish Highlands.

Delivery to off shore Islands and Scottish Highlands with a UK Postcode is £30.00+VAT.

Delivery Notes:

1pm is the cut off point for Next Day deliveries.


Please note that Printed Cable Ties have a 2 to 4 week lead time, so next day delivery will apply only once the cable ties are printed.

Tracking:

Tracking details will be emailed to you once your order has shipped.

View full details

Pack Size: 100 Heat Shrink Female Bullet Connectors

Our heat shrink female bullet connectors — also called bullet receptacles or bullet terminals — provide a sealed, high-performance connection that’s perfect for marine, automotive, and industrial wiring applications.

🔧 Key Features:

  • 💧 Waterproof, Heat-Shrink Insulation
    Polyethylene insulation lined with hot melt adhesive delivers a watertight seal to protect against moisture, dust, and corrosion.

  • 🔄 Quick-Disconnect Design
    Easily mates with male bullet terminals, allowing for fast repairs and component swaps.

  • ⚙️ High-Conductivity Core
    Tin-plated brass ensures excellent electrical flow and long-term corrosion resistance.

  • 🔥 Operating Temperature: -45°C to +125°C
    🔥 Shrink Temp Range: +125°C to 180°C
    ⚡ Voltage Rating: 600V

  • 🟥🟦🟡 Wire Size & Colour Coding

    • Red: 0.5–1.5mm² (22–16 AWG)

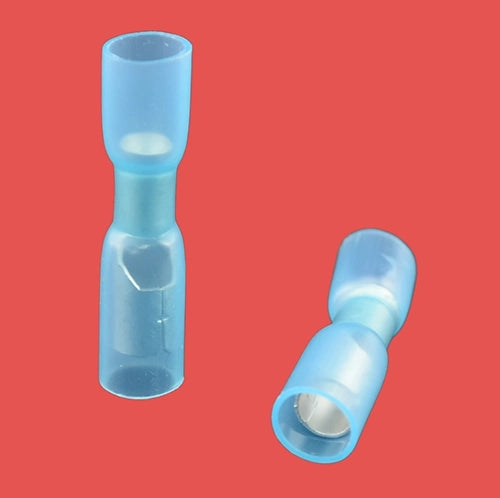

    • Blue: 1.5–2.5mm² (16–14 AWG)

    • Yellow: 4.0–6.0mm² (12–10 AWG)

Ideal for harsh environments or outdoor use, these connectors provide both mechanical strength and insulation protection in a single step.
