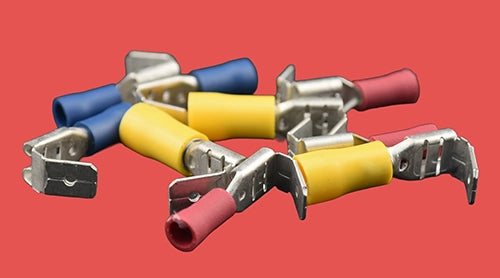

Pack Size: 100 Piggyback Spade Connectors
Our piggyback spade connectors – also known as piggyback spade terminals or piggyback spade crimps – allow dual connections from a single terminal, perfect for daisy-chaining or parallel wiring in tight spaces.

Key Features:

🔌 Dual Connection Capability
Enables an additional wire to be connected to the same terminal point, ideal for complex wiring configurations.

🟥🟦🟡 Colour-Coded for Easy Identification

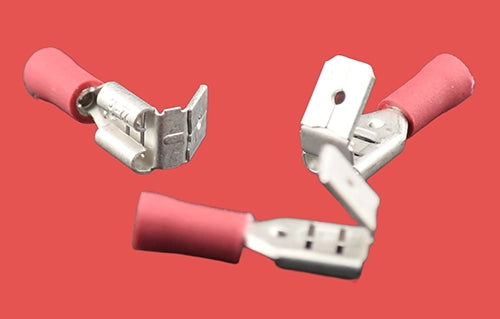

Red: 0.5–1.5mm² (22–16 AWG)

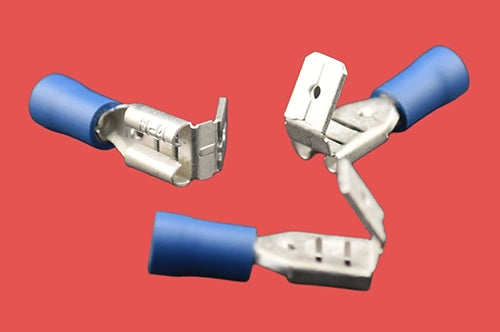

Blue: 1.5–2.5mm² (16–14 AWG)

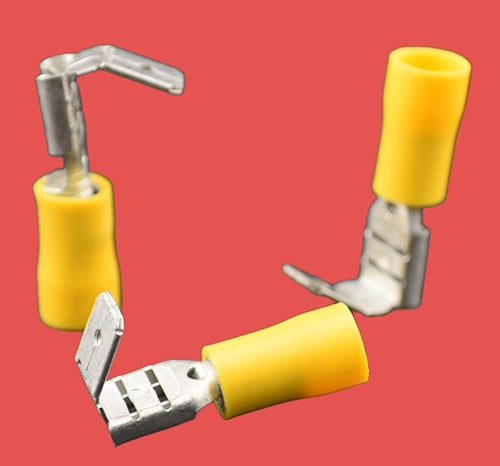

Yellow: 4.0–6.0mm² (12–10 AWG)

🧰 High-Grade Vinyl Insulation
Protects the connection and simplifies crimping.

⚙️ Durable Copper Core with Tin Plating
Provides excellent conductivity and corrosion resistance.

🌡️ Temperature Range:
-10°C to +75°C

⚡ Voltage Rating:
Rated for up to 300V

Bulk Discounts Available
Sold in packs of 100 with automatic savings for 10+ and 100+ packs.

Home / All Crimp Terminals / Quick Disconnect Crimp Connectors / Piggyback Spade Connectors

Piggyback Spade Connectors

£4.26

Sale Sold out

Shipping calculated at checkout.

prices shown are ex VAT, packs of 100

Discounts will appear below after you make your size/colour selections

SKU:JCTRPB63

Quantity

Tech Specs

All terminals come in packs of 100
Material composition: copper, tin, vinyl
Operating temperature: -10°C to +75°C
Max. voltage rating: 300V
