Pack Size: 100 Insulated Fork Terminals

Our insulated fork terminals — also called fork connectors or fork crimps — offer a quick, secure, and low-resistance solution for terminating wires to screw-type terminals.

Key Features:

🔧 Fast, Tool-Free Removal
The open-ended fork design allows for easy installation or removal without fully unscrewing the stud or bolt — ideal for maintenance or upgrades.

🧰 High-Grade Vinyl Insulation
Provides electrical protection and ensures crimping is clean and secure with minimal insertion force.

⚙️ Flared Barrel Entry
Simplifies wire insertion and supports fast, consistent crimping every time.

🧪 Copper Core, Tin-Plated Finish
Made from tin-plated copper for maximum conductivity and corrosion resistance in all conditions.

🌡️ Temperature Range: -10°C to +75°C
⚡ Voltage Rating: 600V

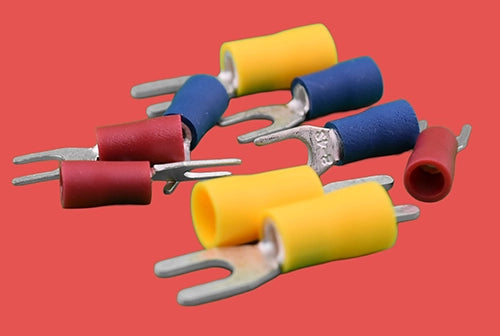

Colour-Coded Wire Size Guide:

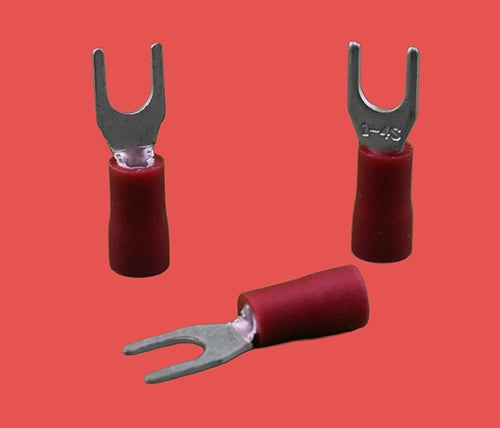

• 🔴 Red: 0.5–1.5mm² (22–16 AWG)

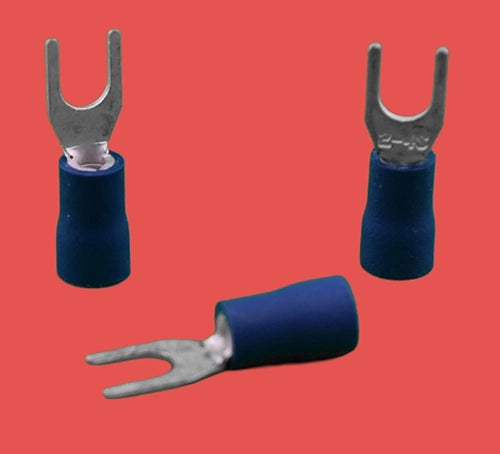

• 🔵 Blue: 1.5–2.5mm² (16–14 AWG)

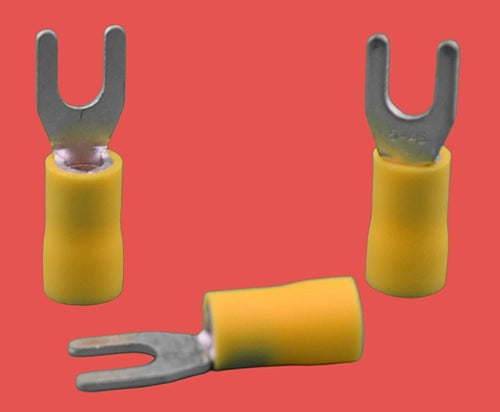

• 🟡 Yellow: 4.0–6.0mm² (12–10 AWG)

These fork terminals are perfect for automotive, electrical control panels, and general wiring tasks where easy access is required.
