Professional Grade Green Heat Shrink Tubing

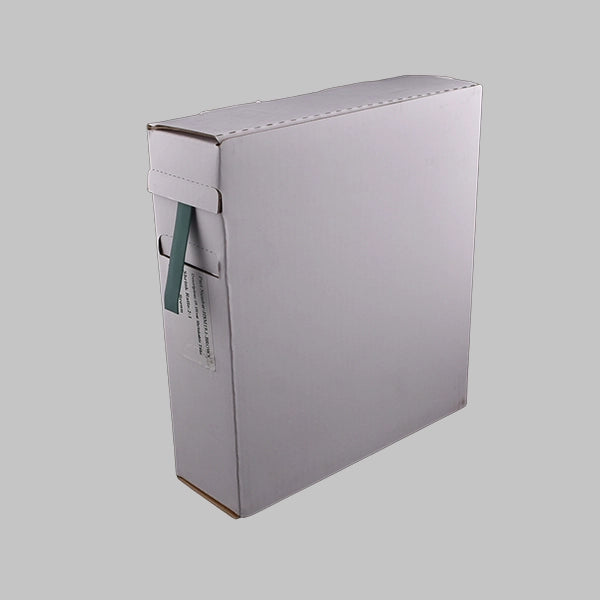

Supplied in compact mini reel boxes for electrical and industrial use
Our green heat shrink tubing mini reels deliver professional-grade insulation and identification for electrical, automotive, and industrial applications. Manufactured from flame-retardant polyolefin with a 2:1 shrink ratio, this tubing provides durable insulation, mechanical protection, and clear colour coding for cable systems.
Key Specifications
- Material: Polyolefin – Standard wall
- Shrink Ratio: 2:1
- Shrink Temperature: 80 °C
- Operating Temperature: –55 °C to +125 °C
- Wall Thickness (after recovery): ±0.10 mm (±0.15 mm for 25.4 mm size)
- Flame Retardant: Yes
- Chemical Resistance: Fuel, hydraulic fluid, and lubricating oil
- Colour Identification: Green for cable marking and earth identification
- Packaging: Compact mini reel – easy to store and dispense
Professional Insulation and Identification
Green heat shrink tubing is widely used by electricians and engineers for earthing and grounding identification in electrical installations. In professional wiring, green is commonly associated with earth or ground conductors, ensuring clear visual coding and safety compliance across control panels, switchgear, and industrial equipment.
The compact mini reel box keeps tubing clean, organised, and easy to use, making it ideal for site work, maintenance, and electrical assembly.
Trade Applications
- Electrical insulation and strain relief for wiring and terminations
- Colour-coded identification for earth or ground cables
- Harnessing and cable protection in control panels
- Industrial and automotive installations
- Maintenance and repair where clear colour coding is essential
Available Sizes
| Internal Diameter (Before Shrink) | Roll Length | Recovered Internal Diameter | Wall Thickness (After Recovery) |
|---|---|---|---|
| 1.2 mm | 12 m | 0.6 mm | 0.36 mm ± 0.10 mm |
| 1.6 mm | 12 m | 0.8 mm | 0.36 mm ± 0.10 mm |
| 2.4 mm | 11 m | 1.2 mm | 0.45 mm ± 0.10 mm |
| 3.2 mm | 11 m | 1.6 mm | 0.45 mm ± 0.10 mm |
| 4.8 mm | 10 m | 2.4 mm | 0.56 mm ± 0.10 mm |
| 6.4 mm | 9 m | 3.2 mm | 0.56 mm ± 0.10 mm |
| 9.5 mm | 7 m | 4.8 mm | 0.56 mm ± 0.10 mm |
| 12.7 mm | 6 m | 6.4 mm | 0.56 mm ± 0.10 mm |
| 19.1 mm | 5 m | 9.5 mm | 0.70 mm ± 0.10 mm |
| 25.4 mm | 3.5 m | 12.7 mm | 0.90 mm ± 0.15 mm |
Trade Quality and Compliance
Built from premium flame-retardant polyolefin, this tubing delivers professional insulation and long-term mechanical protection. It is designed for consistent shrink performance and electrical safety, meeting the requirements of trade and industrial environments.
Compliant with:
- RoHS Directive (Restriction of Hazardous Substances)
- Electrical safety and insulation standards for trade applications
Why Choose Our Green Mini Reel Heat Shrink Tubing?
- Green colour identifies earth or ground cables in wiring systems
- Reliable insulation and protection for professional use
- Convenient mini reel box for electricians and engineers
- Flame-retardant and resistant to fuels, oils, and hydraulic fluids
- Ideal for control panels, installations, and maintenance work
Professional FAQs
What is green heat shrink tubing used for?
Professionals use green heat shrink to insulate and identify ground or earth conductors in electrical installations. It ensures safe, clear identification and reliable protection.
Is it suitable for permanent installations?
Yes – it’s made from flame-retardant, RoHS-compliant polyolefin that meets electrical standards for permanent installations, control panels, and machinery.
Can this tubing handle oils and chemicals?
Yes. It offers excellent resistance to fuels, hydraulic fluids, and lubricating oils, making it suitable for industrial and automotive environments.
What temperature should I use to shrink it?
Apply even heat at approximately 80 °C using a heat gun for smooth, uniform recovery and a tight fit.
Why use mini reel packaging?
The compact reel keeps tubing clean, organised, and ready to use — ideal for site work, service vehicles, or workshop installations.
