Pack Size

Supplied in packs of 100 Heat Shrink Fork Connectors

These heat shrink fork connectors – also known as fork terminals or fork crimps – are ideal for fast, secure wire terminations in electrical, automotive, and marine applications.

✅ Key Features

🔧 Secure Fork Design
Quickly attach cables to screw or bolt terminals with ease. The open-ended fork shape allows for fast connection and disconnection without removing the terminal screw.

🛡️ Heat Shrink Insulation with Adhesive Lining
Durable polyethylene insulation shrinks tightly around the wire and includes hot melt adhesive for a waterproof, vibration-resistant seal.

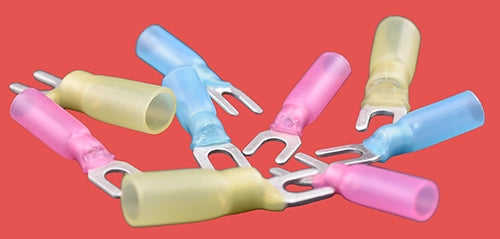

🔴🔵🟡 Colour-Coded by Wire Size

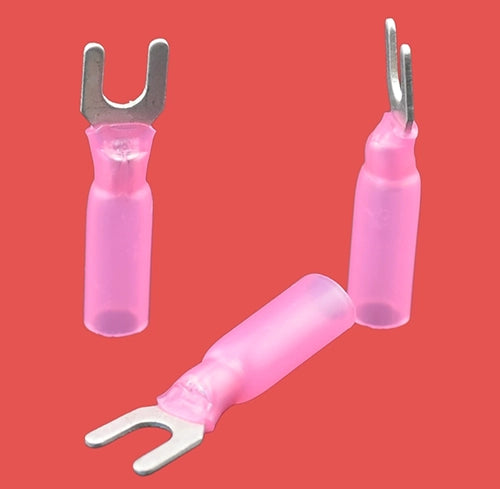

• Red: 0.5–1.5mm² (22–16 AWG)

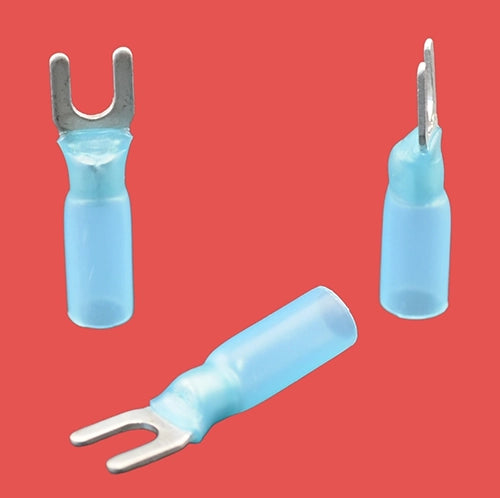

• Blue: 1.5–2.5mm² (16–14 AWG)

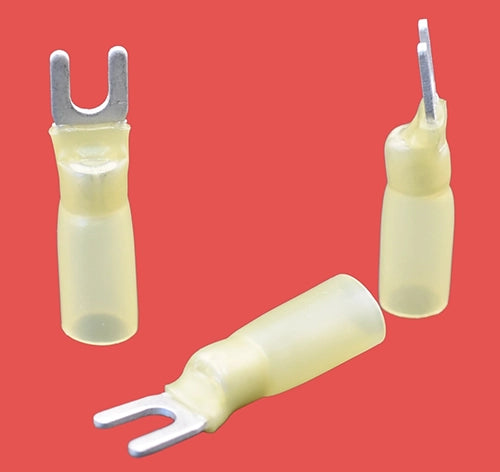

• Yellow: 4.0–6.0mm² (12–10 AWG)

⚙️ High-Quality Tin-Plated Copper Core
Delivers excellent conductivity and corrosion resistance for long-term performance.

🌡️ Operating Temperature: -45°C to +125°C
🔥 Shrink Activation Temperature: +125°C to +180°C
⚡ Voltage Rating: 600V

✅ Bulk Discounts Available

Sold in trade packs of 100. Enjoy automatic discounts when you buy 10+ or 100+ packs.
