Pack Size: 100 – Bulk Discounts Available
Cable tie saddles offer a secure and reliable mounting point for fastening cable bundles. Designed for use with standard cable ties, these nylon saddle mounts are ideal when a stronger, screw-fixed solution is needed instead of adhesive bases.
Manufactured from UL-approved Nylon 66 (94V-2 rated), they withstand operating temperatures between -40°C and +85°C. Their durable saddle design provides maximum stability to wire bundles, even in demanding environments.
Available sizes:
-

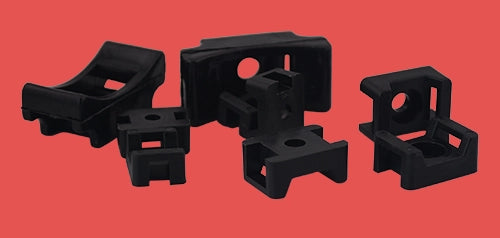

13mm x 18mm (max tie width: 5mm, 8.2mm high, 4mm hole) – Black and Natural
-

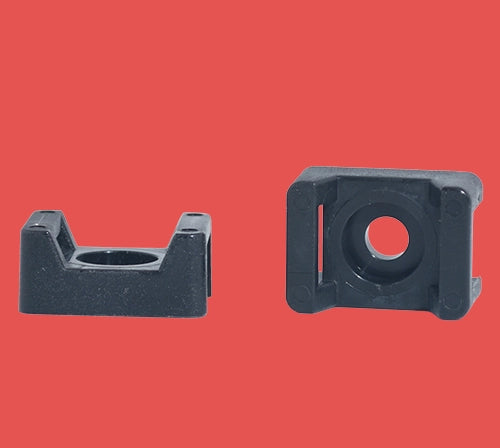

16mm x 22mm (max tie width: 9.5mm, 9.5mm high, 5mm hole) – Black and Natural
-
18.5mm x 40mm (max tie width: 12.7mm, 16.5mm high, 6mm hole) – Black only
Each saddle includes a central hole for screw mounting to walls, panels, or other surfaces. This provides long-term stability and resistance to vibration — ideal for industrial, automotive, and telecoms applications.
Home / Cable Tie Fixings / Cable Tie Saddles
Cable Tie Saddles
Cable Tie Saddles
prices shown are ex VAT, packs of 100
Discounts will appear below after you make your size/colour selections
SKU:JCTCTSSBK
Couldn't load pickup availability
Tech Specs
Tech Specs
Operating Temp: -40 to +85°C.
Flammability: UL 94 V2
UV Light/Ozone Resistance: Medium
Oils & Grease Resistance: Excellent
Solvents Resistance: Good
Petrol Resistance: Excellent
