Heat Shrink Blade Connectors

Heat Shrink Blade Connectors

All terminals are available in packs of 100.

Heat shrink blade connectors have an operating temperature of -45°C to +125°C and a shrinkable temperature of +125°C to 180°C.

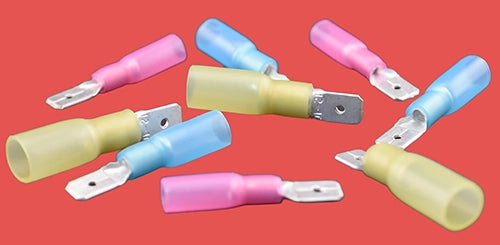

These male blade terminals provide a secure, insulated, and watertight connection for automotive, marine, and industrial wiring.

Each connector features a durable polyethylene insulation lined with hot melt adhesive. This creates a tight seal that protects against moisture and contaminants, while the high-grade copper core ensures excellent electrical conductivity.

Also known as heat shrink blade terminals or heat shrink male tab connectors, these components are designed for easy mating with female blade connectors. Once crimped and heat-shrunk, they deliver a strong, sealed connection that performs reliably even in harsh environments.

Wire Size Compatibility:

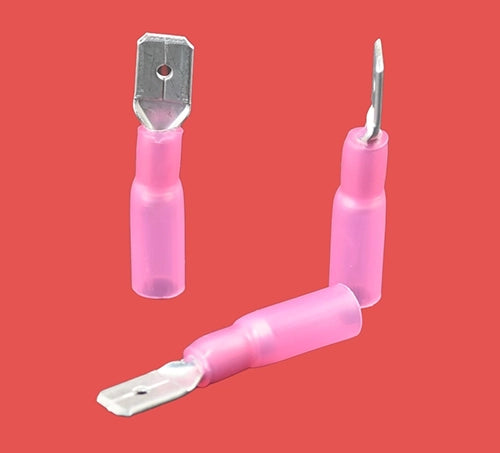

• 🔴 Red: 0.5–1.5mm² (22–16 AWG)

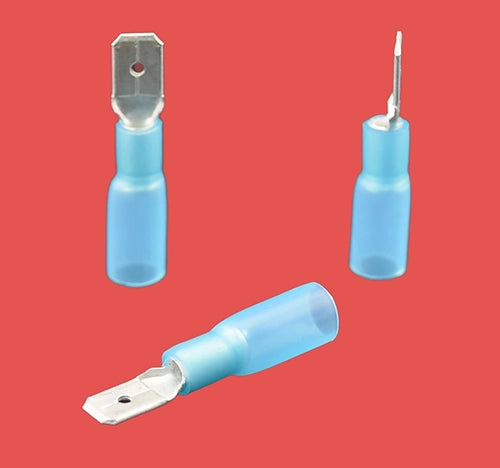

• 🔵 Blue: 1.5–2.5mm² (16–14 AWG)

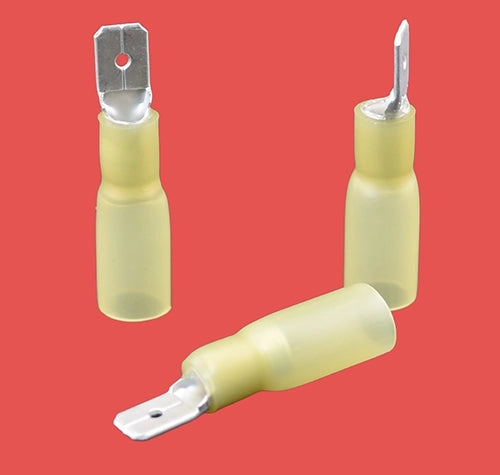

• 🟡 Yellow: 4.0–6.0mm² (12–10 AWG)

Technical Details:

• Material: Brass and copper with tin plating

• Maximum voltage rating: 600V

• Adhesive-lined heat shrink for secure waterproofing

Perfect for tradespeople and DIYers alike, these blade connectors are a go-to choice when durability, insulation, and reliability matter most.
