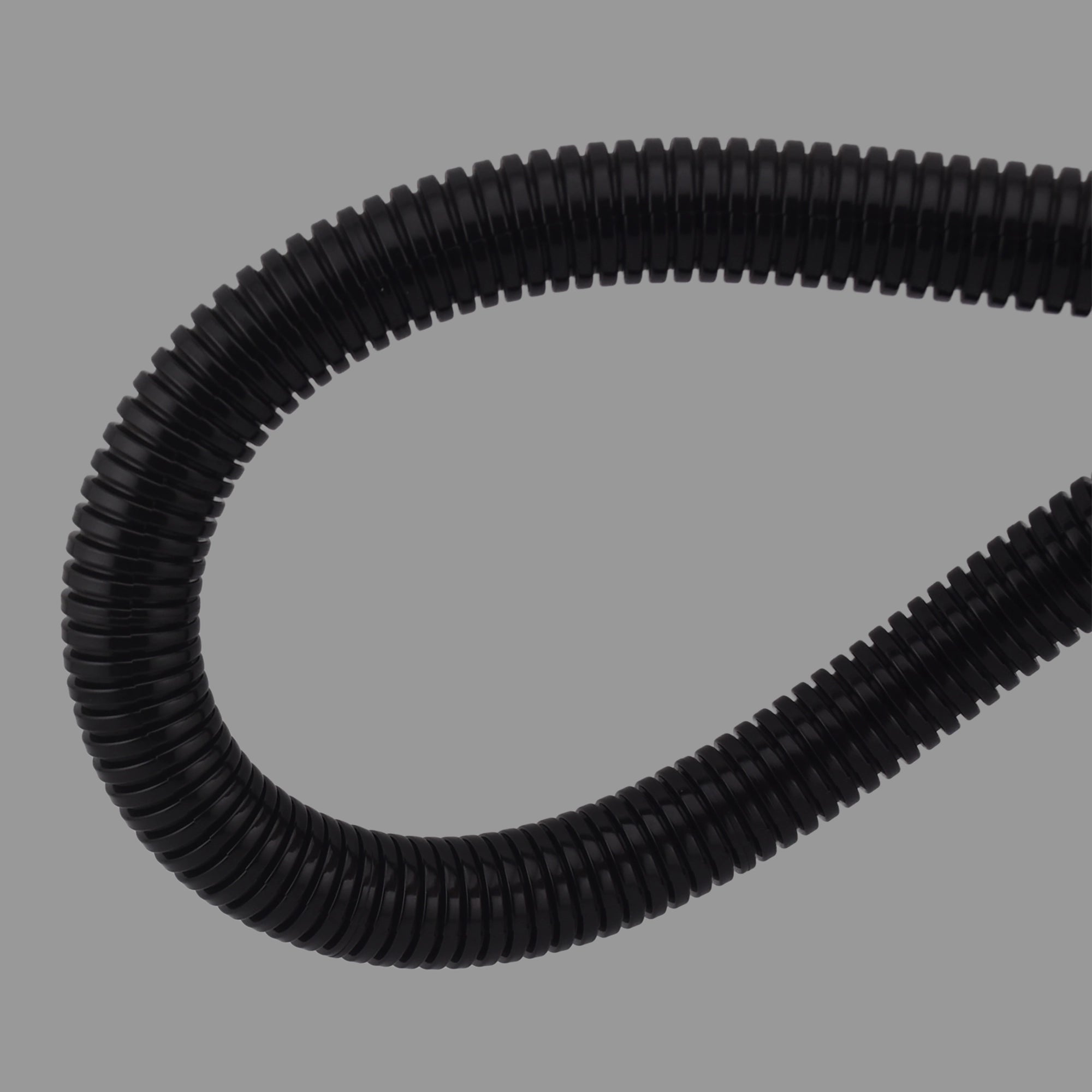

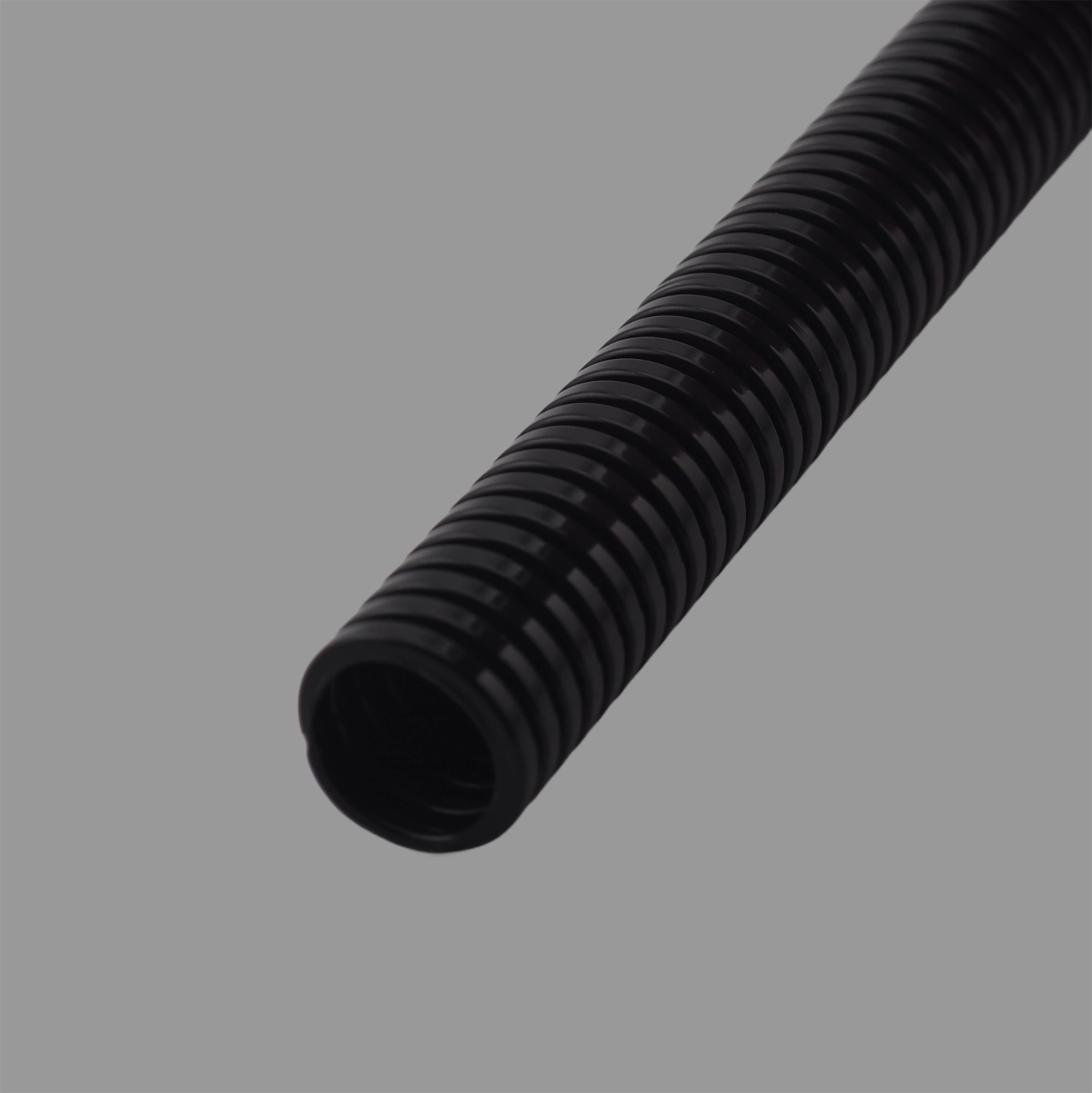

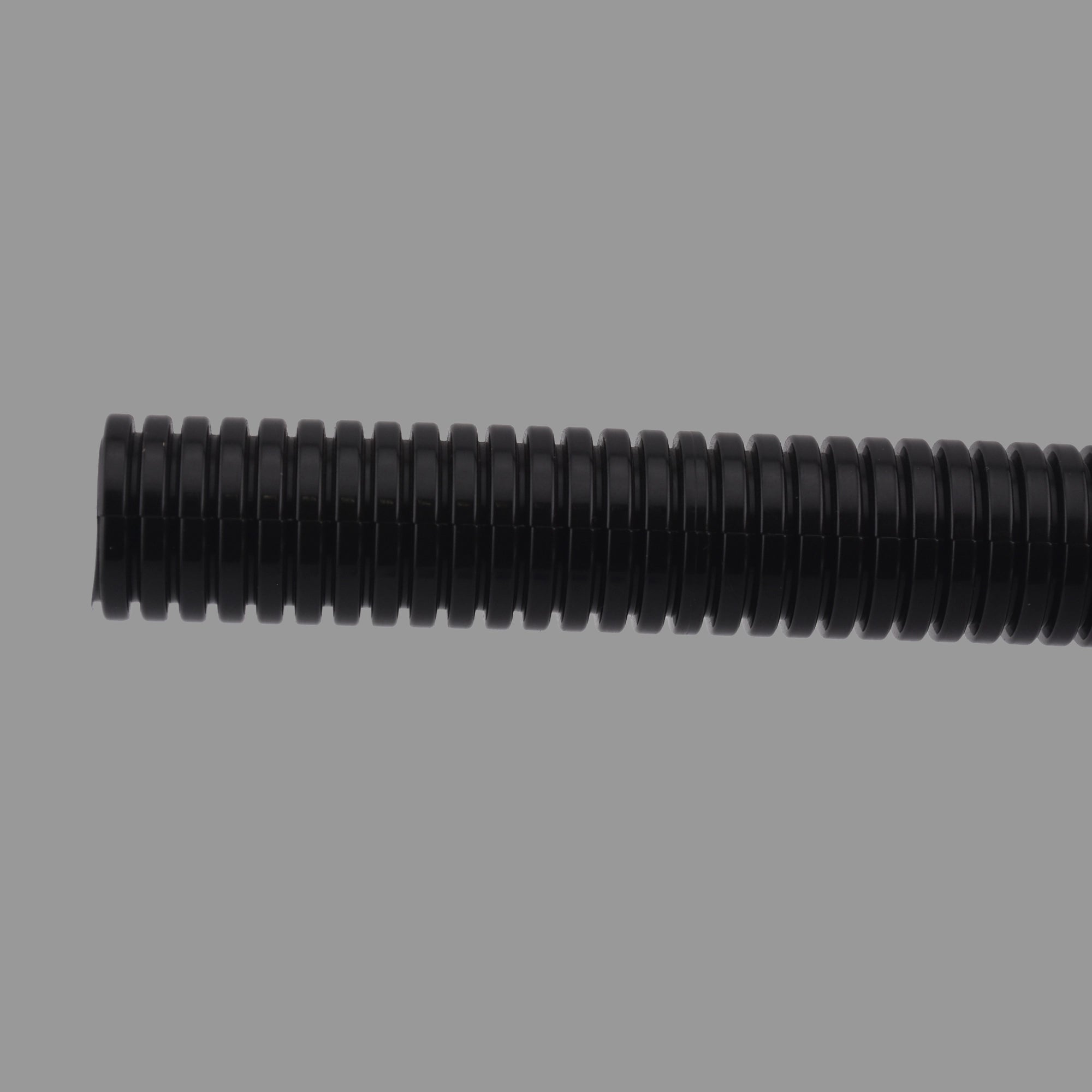

Black Flexible Nylon Conduit Non Split

Sold in 50 metre coils. This black flexible nylon conduit provides maximum protection for cables in demanding electrical, automotive, industrial, and infrastructure installations. Designed as a non split corrugated conduit, it delivers a seamless protective barrier where long term durability and security are essential.

Heavy Duty Non Split Nylon Conduit

Unlike split conduit, non split conduit offers continuous protection along the full cable run. The seamless design helps prevent crushing, impact damage, and tampering, making it ideal for permanent installations where cables are not regularly added or removed.

Manufactured from high quality nylon, this flexible conduit combines excellent abrasion resistance with high fatigue life. It is suitable for environments where vibration, movement, or mechanical stress would damage standard conduit systems.

Engineered for Harsh Environments

This black flexible conduit is flame retardant, UV protected, and heat stabilised, making it suitable for both indoor and outdoor use. It provides reliable performance across a wide temperature range and offers full protection up to IP68 when installed correctly.

• Material: Nylon
• Construction: Corrugated, non split conduit
• Colour: Black
• Length: 50 metre coils
• UV resistance: According to DIN EN ISO 8580
• Flame retardant and heat stabilised

Operating Temperature

• Static: -40°C to +120°C
• Dynamic: -5°C to +150°C (5,000 cycles)

Available Sizes

All sizes are measured by internal diameter, with outside diameter and minimum static bend radius shown for installation planning.

• 6.7mm ID | 10.0mm OD | 20mm bend radius
• 10.1mm ID | 13.2mm OD | 26mm bend radius
• 13.0mm ID | 16.0mm OD | 32mm bend radius
• 14.5mm ID | 18.5mm OD | 35mm bend radius
• 17.0mm ID | 21.2mm OD | 42mm bend radius
• 21.6mm ID | 25.6mm OD | 52mm bend radius
• 23.1mm ID | 28.3mm OD | 57mm bend radius

Typical Applications

This non split nylon conduit is commonly used where maximum cable protection and long term reliability are required.

• Electrical and data cable protection in factories and commercial buildings
• Infrastructure projects including bridges, tunnels, and transport systems
• Telecoms and data installations where durability and tamper resistance matter
• Industrial environments with vibration, abrasion, or mechanical stress

Non Split vs Split Conduit

Non split conduit provides greater mechanical protection than split conduit due to its continuous construction. It is the preferred option for permanent cable runs where strength, durability, and security are more important than quick access.

If you need a solution for retrofitting or repairs where cables are already installed, split conduit may be more suitable.
