Female Spade Connectors

Female Spade Connectors

All terminals are available in packs of 100.

Female spade connectors have an operating temperature of -10°C to +75°C.

These female spade terminals ensure a secure and efficient connection for electrical wiring applications.

Female push-on crimps feature high-grade vinyl insulation, which provides electrical insulation and strain relief while making crimping and insertion easy.

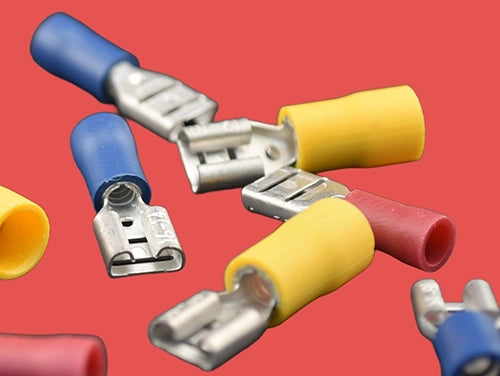

These female spade connectors, also known as female spade terminals or female push-on crimps, are designed to slide onto male spade terminals, creating a reliable and quick-disconnect connection. Commonly used in automotive, industrial, and general electrical applications, they provide a secure yet easily removable link between wires.

Manufactured from brass and copper, then tin-plated for superior conductivity and corrosion resistance, these connectors ensure a strong and long-lasting electrical connection.

The terminals are available in different sizes to accommodate various wire gauges:

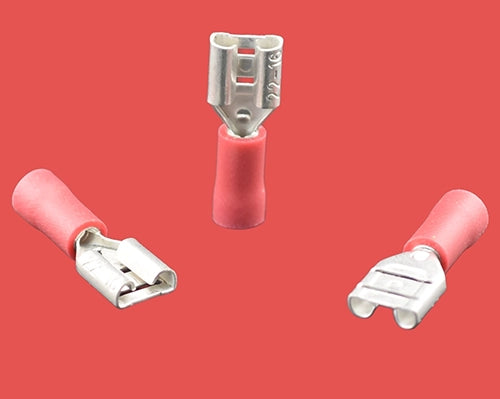

• Red female spade connectors support a conductor size of 0.5-1.5mm² or 22-16 AWG

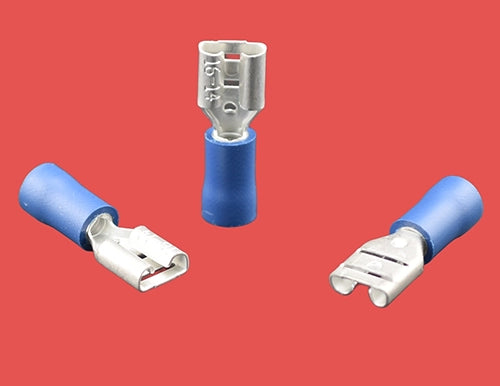

• Blue female spade connectors support a conductor size of 1.5-2.5mm² or 16-14 AWG

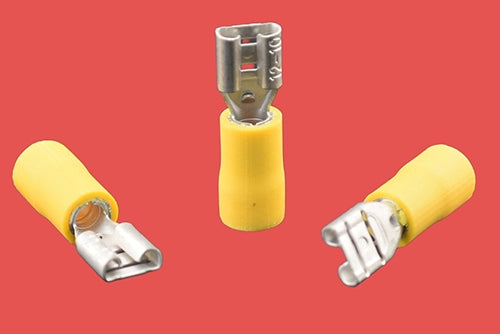

• Yellow female spade connectors support a conductor size of 4.0-6.0mm² or 12-10 AWG

All our female spade connectors have a maximum voltage rating of 300V.
