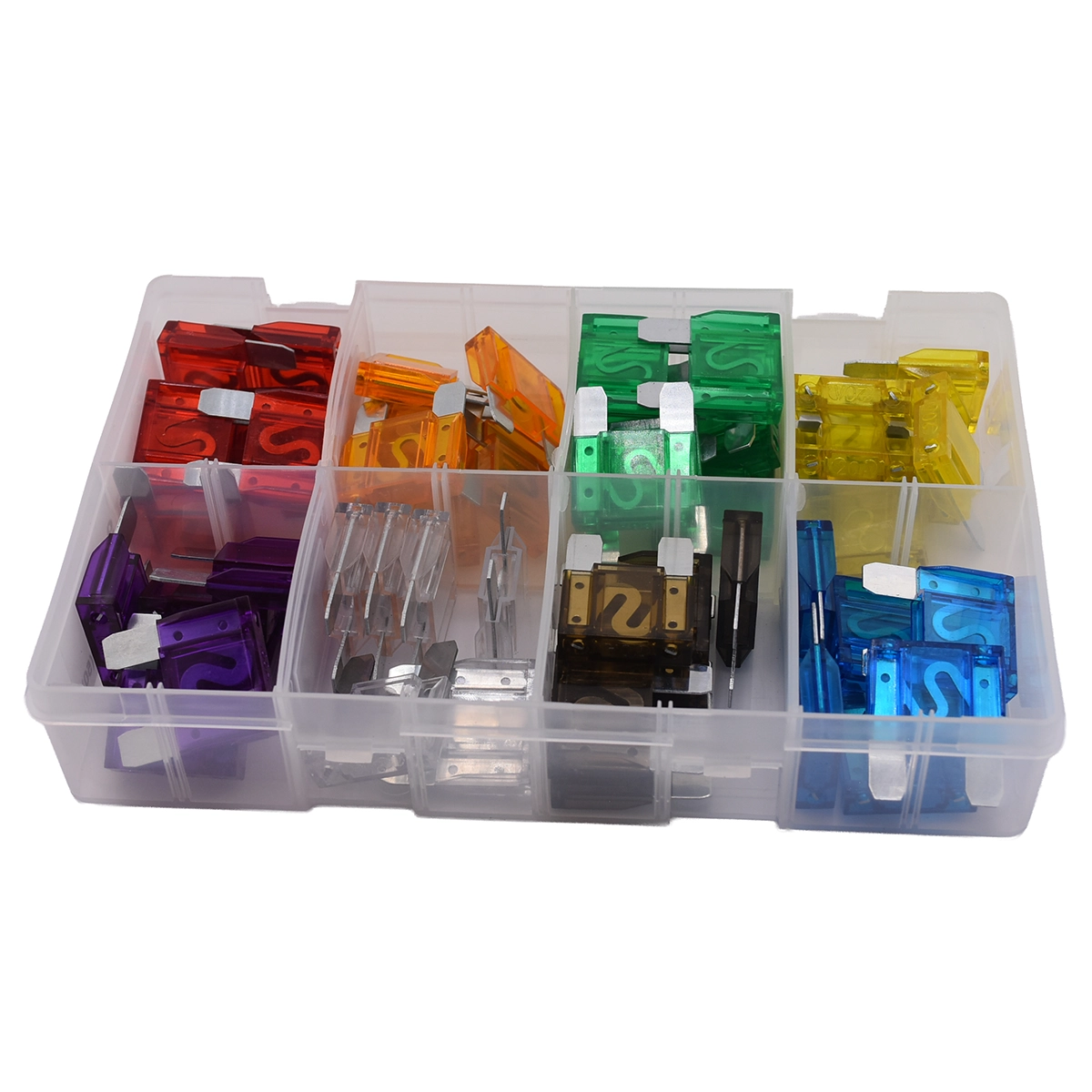

Assorted maxi blade fuses supplied as a 50 piece kit containing eight high current fuse ratings from 20A to 100A.
Designed to protect high current automotive electrical circuits, these maxi fuses provide a practical selection of commonly used replacement fuse ratings for vehicles and other 32V DC applications.

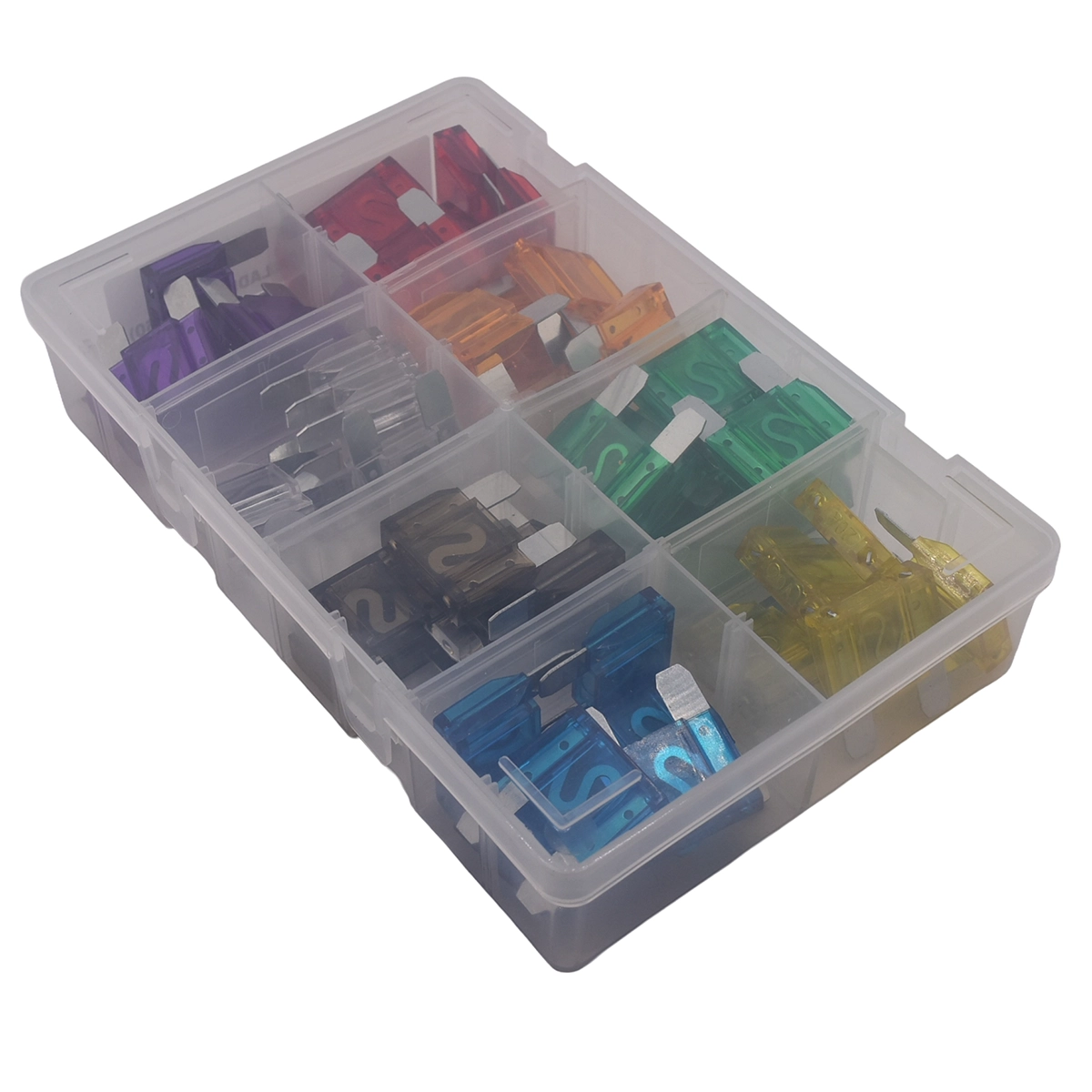

The assortment contains colour coded maxi blade fuses, making it easier to identify and select the required amperage. All 50 fuses are organised in a compartmented storage box for convenient storage, identification and access.
Manufactured from tin plated zinc alloy, the fuses are rated for circuits up to 100A, with a maximum voltage rating of 32V DC and an operating temperature range of -40°C to +105°C.
This assorted maxi fuse kit is suitable for automotive electrical repairs, high current vehicle circuits, workshops, garages, service vehicles and general vehicle maintenance.
These assorted maxi blade fuses provide a convenient selection of commonly used high current fuse ratings in one organised kit.
| SKU | Fuse Rating | Colour | Quantity |
|---|---|---|---|
| JCTFU7-20 | 20A | Yellow | 6 |
| JCTFU7-30 | 30A | Green | 7 |
| JCTFU7-40 | 40A | Saffron | 6 |
| JCTFU7-50 | 50A | Red | 7 |
| JCTFU7-60 | 60A | Blue | 6 |
| JCTFU7-70 | 70A | Brown | 6 |
| JCTFU7-80 | 80A | White | 6 |
| JCTFU7-100 | 100A | Purple | 6 |
| Total | 50 |
| Specification | Details |
| Fuse type | Maxi blade fuse |
| Material | Tin plated zinc alloy |
| Voltage rating | 32V DC max |
| Operating temperature | -40°C to +105°C |
| Current rating range | 20A to 100A |
| Number of current ratings | 8 |
| Maximum circuit current | 100A |
| Pack quantity | 50 pieces |
| Primary application | Automotive |
| Load (% of Rating) | Minimum Opening Time | Maximum Opening Time |
| 110% | 14,400 seconds | No specified maximum |
| 135% | 0.75 seconds | 1,800 seconds |
| 200% | 0.15 seconds | 5 seconds |
| 350% | 0.08 seconds | 0.5 seconds |
