Assorted standard blade fuses supplied as a 250 piece kit containing ten commonly used current ratings from 2A to 40A.
Designed primarily for automotive applications, this automotive fuse assortment provides a practical selection of replacement blade fuses for vehicle electrical circuits, accessories and general maintenance.

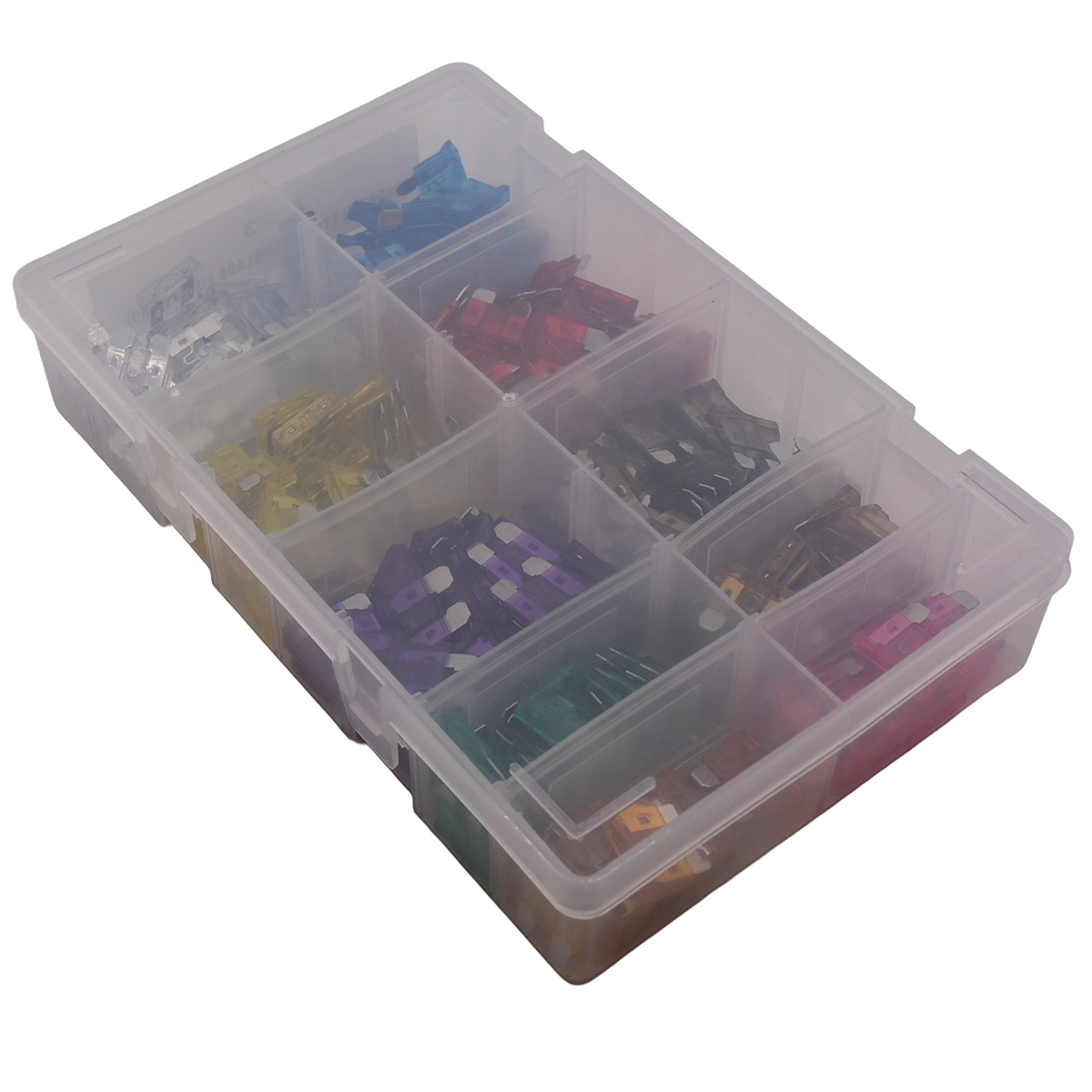

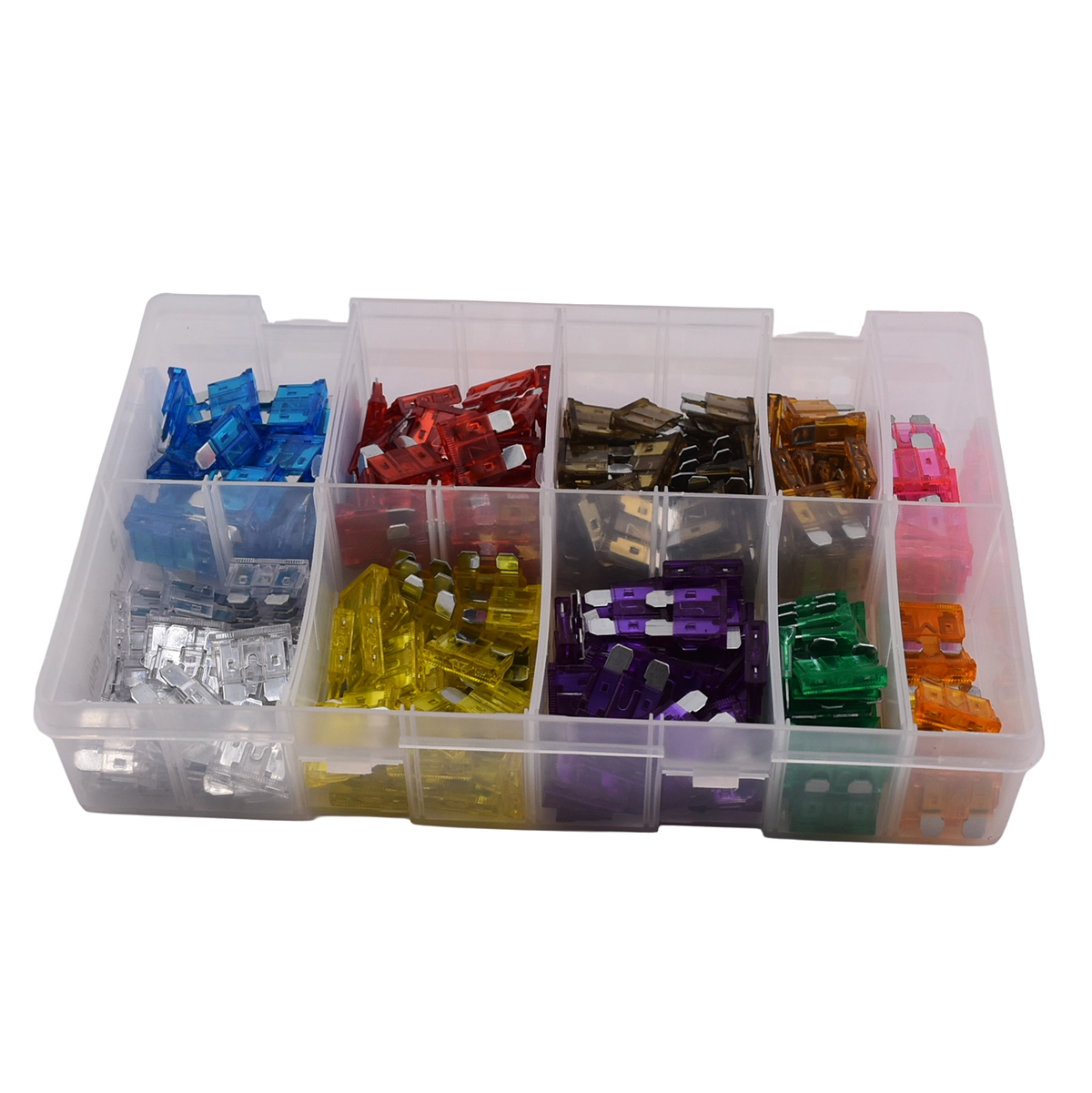

The kit contains colour coded standard blade fuses in a range of commonly used amperage ratings. All 250 fuses are organised in a compartmented storage box, making it easier to identify, select and access the required fuse.
Manufactured from tin plated zinc alloy, the fuses have a maximum voltage rating of 32V DC and an operating temperature range of -40°C to +105°C.
This assorted automotive fuse kit is suitable for garages, workshops, service vehicles, automotive electricians, vehicle maintenance and general automotive electrical repairs.
These assorted standard blade fuses provide a convenient selection of commonly used fuse ratings in one organised kit.
| SKU | Fuse Rating | Colour | Quantity |
|---|---|---|---|
| JCTFU2-3 | 3A | Purple | 30 |
| JCTFU2-4 | 4A | Pink | 10 |
| JCTFU2-5 | 5A | Orange | 20 |
| JCTFU2-7.5 | 7.5A | Brown | 30 |
| JCTFU2-10 | 10A | Red | 40 |
| JCTFU2-15 | 15A | Blue | 30 |
| JCTFU2-20 | 20A | Yellow | 30 |
| JCTFU2-25 | 25A | Natural | 30 |
| JCTFU2-30 | 30A | Green | 20 |
| JCTFU2-40 | 40A | Tan | 10 |
| Total | 250 |
| Specification | Details |
| Fuse type | Standard blade fuse |
| Material | Tin plated zinc alloy |
| Voltage rating | 32V DC max |
| Operating temperature | -40°C to +105°C |
| Current rating range | 3A to 40A |
| Number of current ratings | 10 |
| Primary application | Automotive |
| Load (% of Rating) | Minimum Opening Time | Maximum Opening Time |
| 110% | 14,400 seconds | No specified maximum |
| 135% | 0.75 seconds | 1,800 seconds |
| 200% | 0.15 seconds | 5 seconds |
| 350% | 0.08 seconds | 0.5 seconds |
