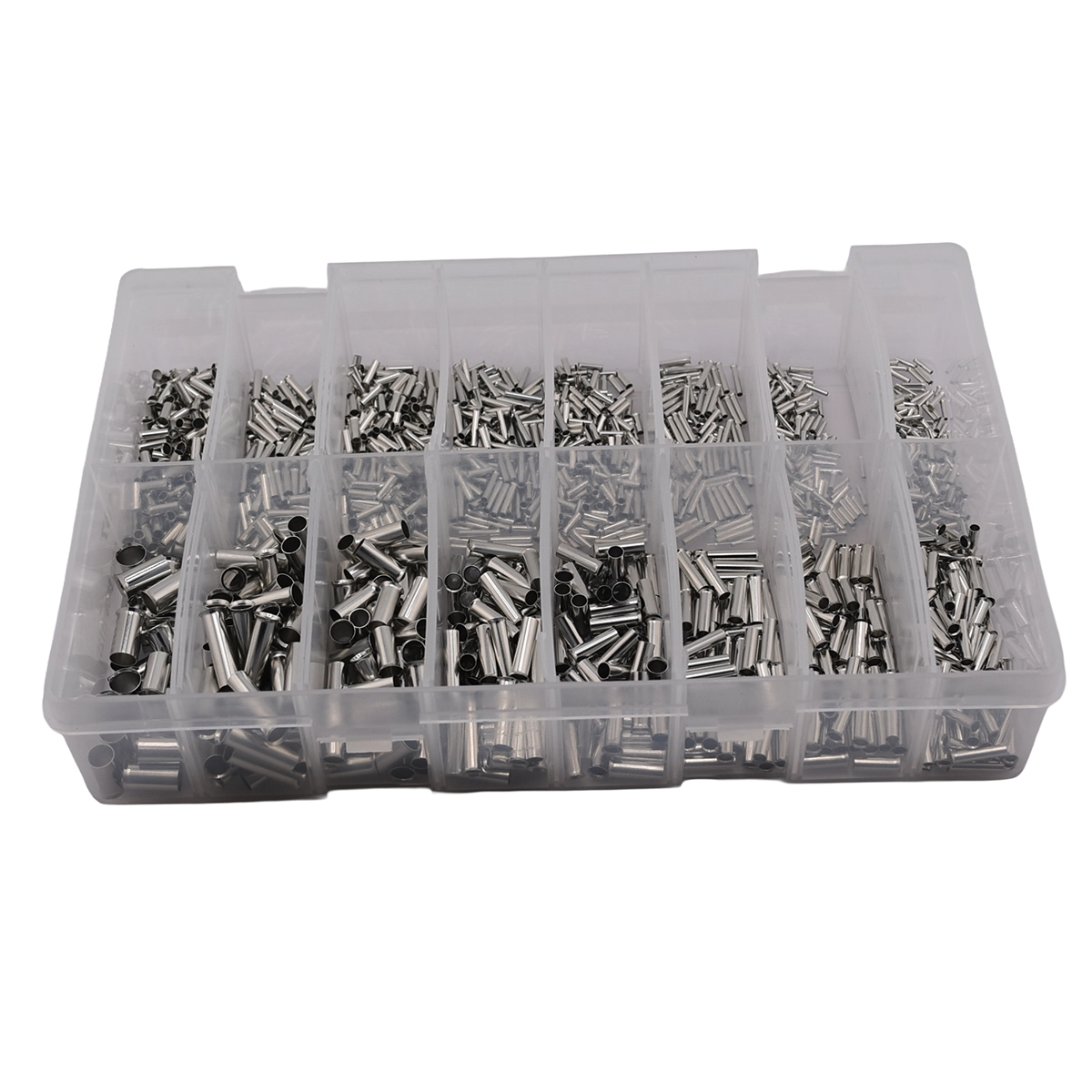

Assorted uninsulated bootlace ferrules supplied as a 1725 piece kit containing a practical range of conductor sizes and barrel lengths from 0.5mm² to 16.0mm².
Also known as uninsulated cord ends, ferrules or end sleeves, these terminals are used to terminate stranded electrical conductors before connection to terminal blocks, control equipment and other electrical components.

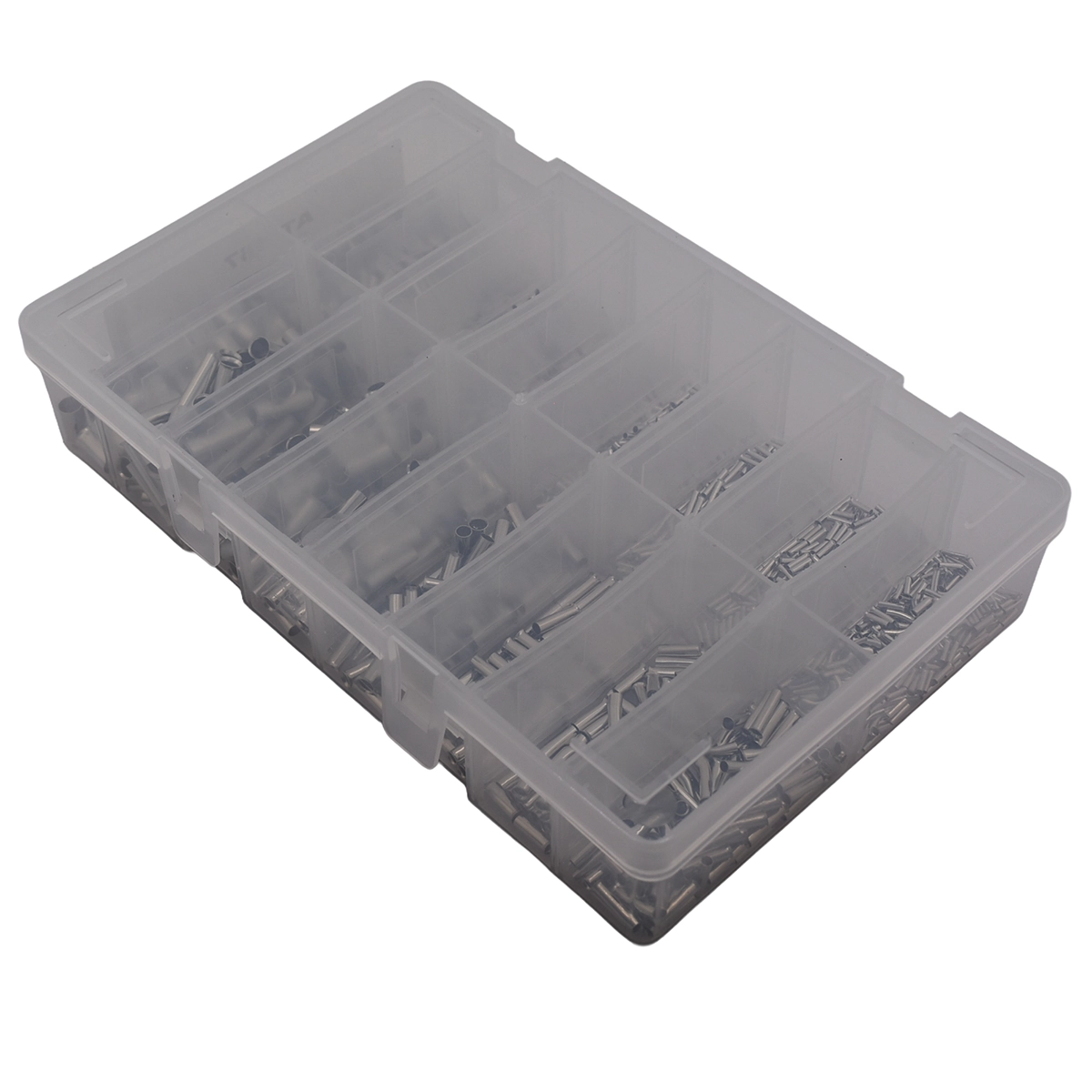

The kit contains 17 ferrule sizes, with different barrel lengths available for several conductor sizes. Each size is organised in a separate compartment within the storage box, making it easier to identify, select and access the required ferrule.
The ferrules are manufactured from tin plated copper for reliable conductivity and corrosion resistance. Their seamless barrel design helps contain loose wire strands, while the flared entry allows easier conductor insertion.
This uninsulated bootlace ferrule kit is suitable for panel building, control cabinets, electrical installations, equipment assembly, maintenance work and workshop use.
These assorted uninsulated bootlace ferrules provide electricians, panel builders and maintenance engineers with a convenient selection of conductor sizes and barrel lengths in one organised kit.
For secure and consistent termination, use these ferrules with a suitable bootlace ferrule crimping tool.
| SKU | Description | Quantity |
|---|---|---|
| JCTUNCE0506 | Uninsulated Bootlace Ferrule, 0.5mm² x 6mm | 200 |
| JCTUNCE7506 | Uninsulated Bootlace Ferrule, 0.75mm² x 6mm | 200 |
| JCTUNCE7510 | Uninsulated Bootlace Ferrule, 0.75mm² x 10mm | 100 |
| JCTUNCE1006 | Uninsulated Bootlace Ferrule, 1.0mm² x 6mm | 200 |
| JCTUNCE1010 | Uninsulated Bootlace Ferrule, 1.0mm² x 10mm | 100 |
| JCTUNCE1507 | Uninsulated Bootlace Ferrule, 1.5mm² x 7mm | 200 |
| JCTUNCE1510 | Uninsulated Bootlace Ferrule, 1.5mm² x 10mm | 100 |
| JCTUNCE2507 | Uninsulated Bootlace Ferrule, 2.5mm² x 7mm | 200 |
| JCTUNCE2512 | Uninsulated Bootlace Ferrule, 2.5mm² x 12mm | 100 |
| JCTUNCE4010 | Uninsulated Bootlace Ferrule, 4.0mm² x 10mm | 50 |
| JCTUNCE4012 | Uninsulated Bootlace Ferrule, 4.0mm² x 12mm | 50 |
| JCTUNCE6012 | Uninsulated Bootlace Ferrule, 6.0mm² x 12mm | 50 |
| JCTUNCE6015 | Uninsulated Bootlace Ferrule, 6.0mm² x 15mm | 50 |
| JCTUNCE10-10 | Uninsulated Bootlace Ferrule, 10.0mm² x 10mm | 50 |
| JCTUNCE10-12 | Uninsulated Bootlace Ferrule, 10.0mm² x 12mm | 50 |
| JCTUNCE10-18 | Uninsulated Bootlace Ferrule, 10.0mm² x 18mm | 50 |
| JCTUNCE16-12 | Uninsulated Bootlace Ferrule, 16.0mm² x 12mm | 25 |
| Total | 1725 |
| Specification | Details |
| Conductor material | Copper |
| Plating | Tin |
| Insulation | Uninsulated |
| Conductor size range | 0.5mm² to 16.0mm² |
| Barrel length range | 6mm to 18mm |
| Number of sizes | 17 |
| Pack quantity | 1725 pieces |
Uninsulated bootlace ferrules are also commonly referred to as uninsulated cord end terminals, cord ends, wire ferrules, ferrules or end sleeves.
