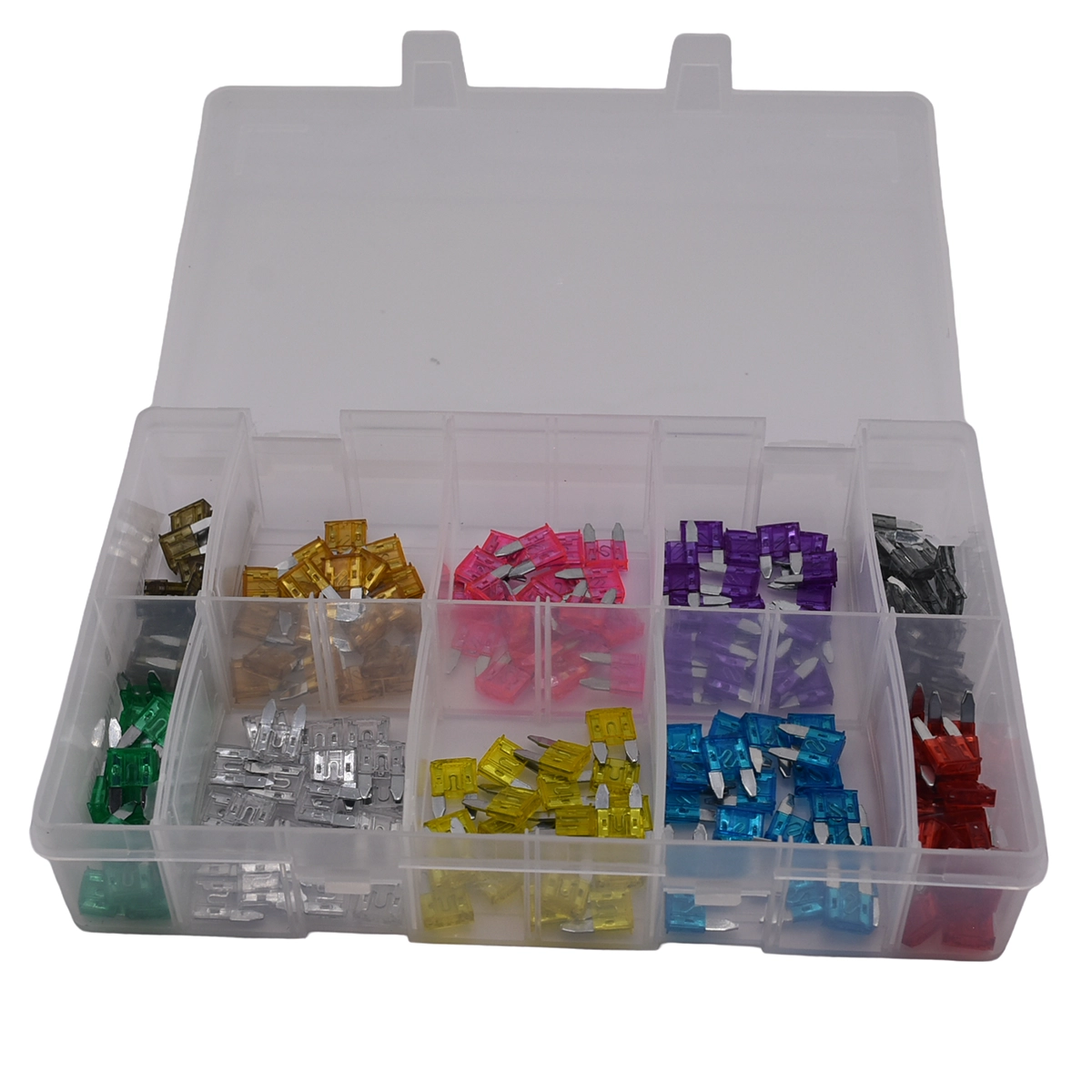

Assorted mini blade fuses supplied as a 200 piece kit containing ten commonly used current ratings from 2A to 30A.
Designed primarily for automotive applications, these mini blade fuses provide a practical selection of replacement fuses for vehicle electrical circuits, accessories and general automotive maintenance.

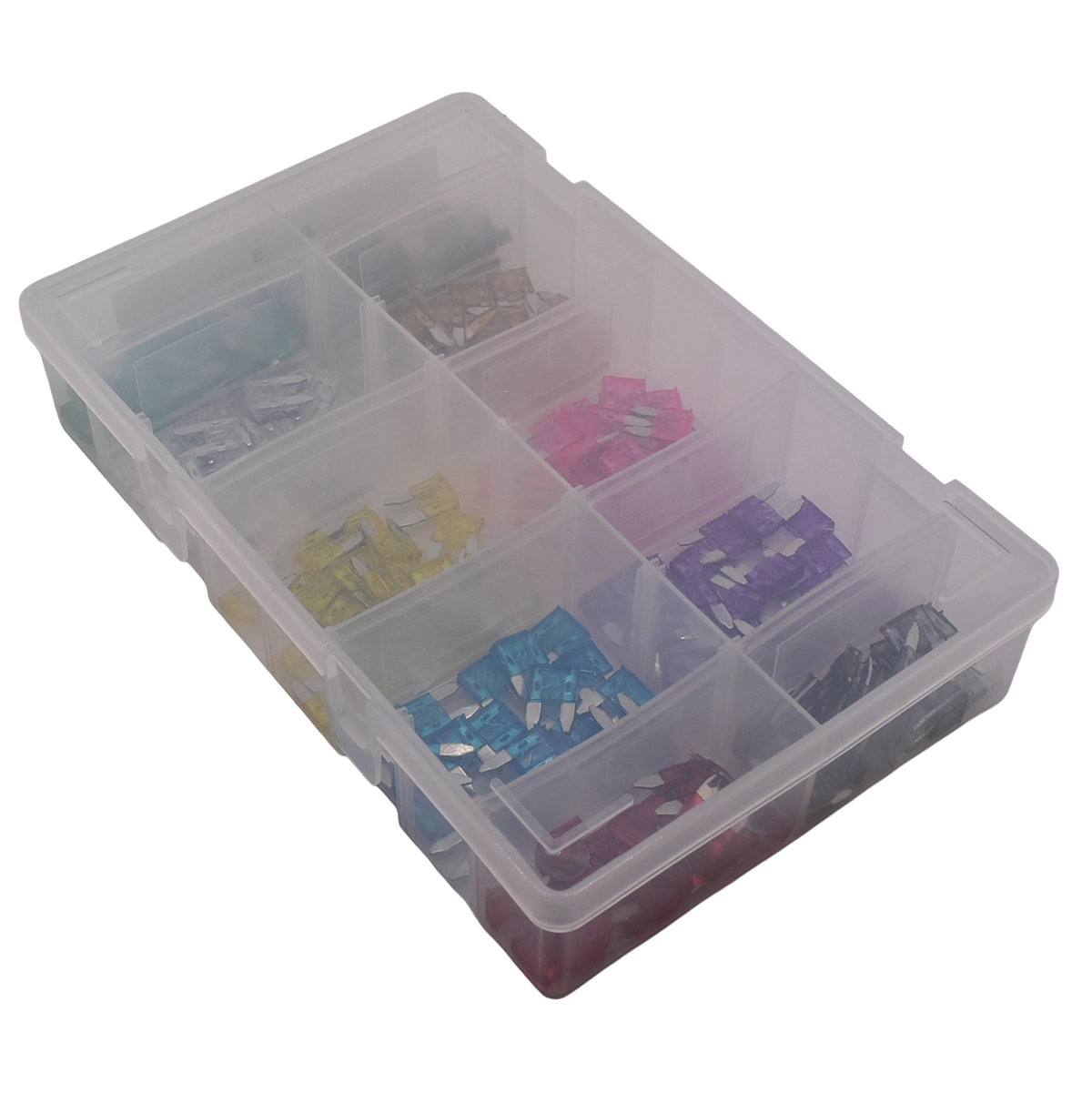

The assortment contains 20 fuses of each rating, with colour coded fuse bodies making it easier to identify and select the required amperage. All 200 fuses are organised in a compartmented storage box for convenient storage and access.
Manufactured from tin plated zinc alloy, the fuses are rated for use at up to 32V DC and have an operating temperature range of -40°C to +105°C.
This assorted mini blade fuse kit is suitable for workshops, garages, service vehicles, automotive electricians, vehicle maintenance and general automotive electrical repairs.
These assorted mini blade fuses provide a convenient range of commonly used amperage ratings in one organised kit.
| SKU | Fuse Rating | Colour | Quantity |
|---|---|---|---|
| JCTFU6-2 | 2A | Grey | 20 |
| JCTFU6-3 | 3A | Purple | 20 |
| JCTFU6-4 | 4A | Pink | 20 |
| JCTFU6-5 | 5A | Tan | 20 |
| JCTFU6-7.5 | 7.5A | Brown | 20 |
| JCTFU6-10 | 10A | Red | 20 |
| JCTFU6-15 | 15A | Blue | 20 |
| JCTFU6-20 | 20A | Yellow | 20 |
| JCTFU6-25 | 25A | Natural | 20 |
| JCTFU6-30 | 30A | Green | 20 |
| Total | 200 |
| Specification | Details |
| Fuse type | Mini blade fuse |
| Material | Tin plated zinc alloy |
| Voltage rating | 32V DC max |
| Operating temperature | -40°C to +105°C |
| Current rating range | 2A to 30A |
| Number of current ratings | 10 |
| Quantity per rating | 20 |
| Pack quantity | 200 pieces |
| Primary application | Automotive |
| Load (% of Rating) | Minimum Opening Time | Maximum Opening Time |
| 110% | 14,400 seconds | No specified maximum |
| 135% | 0.75 seconds | 1,800 seconds |
| 200% | 0.15 seconds | 5 seconds |
| 350% | 0.08 seconds | 0.5 seconds |
