ave 20% when you buy one of our new assorted crimp terminal kits with a JCTCMP2 insulated-terminal ratchet crimper.
Choose from four practical terminal assortments:
| Variant | Terminal selection | Quantity |
|---|---|---|
| Mixed-colour kit | Red, blue and yellow terminals | 365 |
| Red kit | Red terminals | 400 |
| Blue kit | Blue terminals | 400 |
| Yellow kit | Yellow terminals | 260 |
Each assortment contains commonly used pre-insulated terminals for joining, connecting and terminating electrical cables. Depending on the selected kit, the contents include female spade terminals, fully insulated female spade terminals, ring terminals, butt connectors, male spade tabs, bullet connectors, bullet receptacles and piggyback terminals.

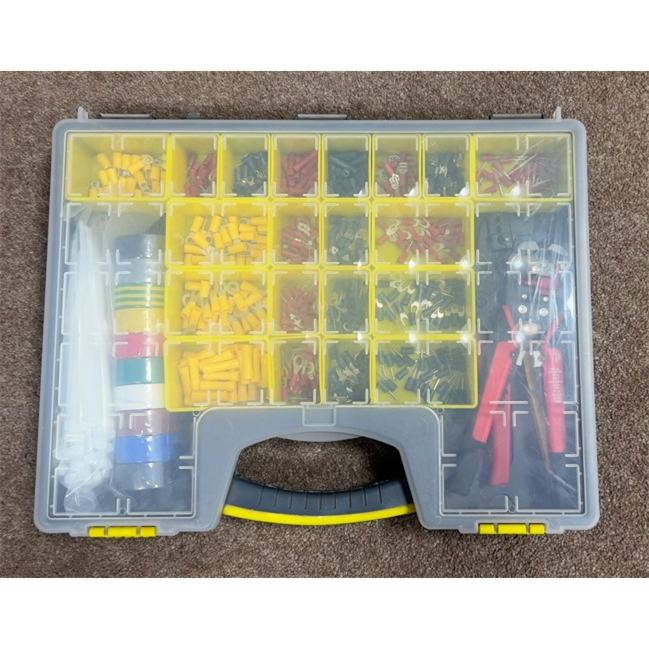

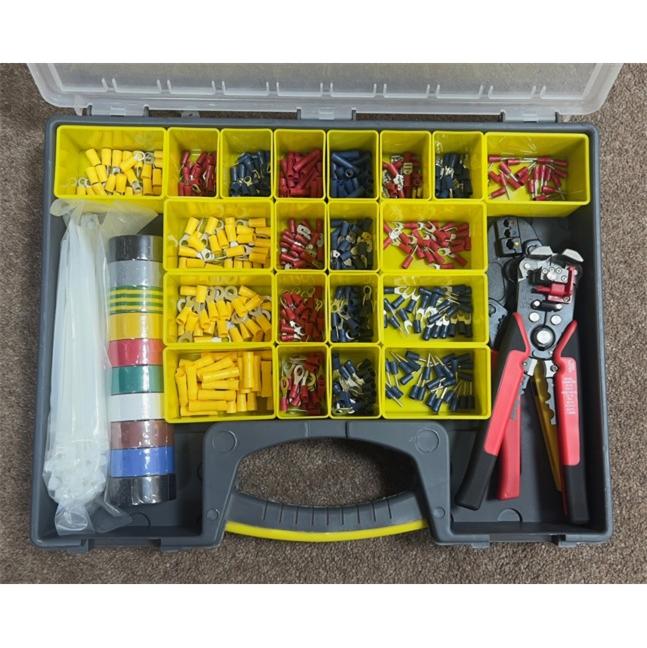

The terminals are supplied in a compartmented storage box for easy identification, organisation and selection.
Every variant also includes the JCTCMP2 ratchet crimping tool, suitable for red, blue and yellow pre-insulated terminals from 0.5 mm² to 6 mm².
These bundles are ideal for workshops, service vehicles, automotive wiring, control panels, equipment assembly, electrical maintenance and general installation work.
JCTCMP2 – Insulated Terminal Ratchet Crimper
| Specification | Details |
|---|---|
| Wire range | 0.5 mm²–6 mm² |
| Terminal compatibility | Red, blue and yellow pre-insulated terminals |
| Adjustment | Pressure-adjustable tensioner |
| Jaws | Replaceable |
| Die material | SCM440 steel, hardened to HRC 42 |
| Handles | Polypropylene grips |
| SKU | Description | Quantity |
|---|---|---|
| JCTRFS28-8 | Red Female Spade Terminal, 2.8 mm × 0.8 mm | 15 |
| JCTBFS63FI | Blue Fully Insulated Female Spade Terminal, 6.3 mm | 20 |
| JCTRBC | Red Butt Connector, 3.3 mm | 20 |
| JCTBBC | Blue Butt Connector, 4.0 mm | 20 |
| JCTRFS63 | Red Female Spade Terminal, 6.3 mm | 20 |
| JCTBFS48-8 | Blue Female Spade Terminal, 4.8 mm × 0.8 mm | 25 |
| JCTBR53 | Blue Ring Terminal, 5.3 mm, 2BA | 40 |
| JCTBR64 | Blue Ring Terminal, 6.4 mm, 0BA | 20 |
| JCTBR84 | Blue Ring Terminal, 8.4 mm, 5/16 inch | 20 |
| JCTBTAB63 | Blue Male Spade Tab Terminal, 6.3 mm | 30 |
| JCTRBU40 | Red Male Bullet Terminal, 4.0 mm | 20 |
| JCTBBU50 | Blue Male Bullet Terminal, 5.0 mm | 40 |
| JCTRBR40 | Red Female Bullet Receptacle, 4.0 mm | 20 |
| JCTBBR50 | Blue Female Bullet Receptacle, 5.0 mm | 20 |
| JCTYFS95 | Yellow Female Spade Terminal, 9.5 mm | 10 |
| JCTBFS63 | Blue Female Spade Terminal, 6.3 mm | 25 |
| Total | 365 |
| SKU | Description | Quantity |
|---|---|---|
| JCTRFS28-8 | Red Female Spade Terminal, 2.8 mm × 0.8 mm | 25 |
| JCTRFS48-8 | Red Female Spade Terminal, 4.8 mm × 0.8 mm | 25 |
| JCTRFS63 | Red Female Spade Terminal, 6.3 mm | 30 |
| JCTRFS48FI-8 | Red Fully Insulated Female Spade Terminal, 4.8 mm × 0.8 mm | 10 |
| JCTRFS63FI | Red Fully Insulated Female Spade Terminal, 6.3 mm | 50 |
| JCTRBC | Red Butt Connector, 3.3 mm | 40 |
| JCTRR43 | Red Ring Terminal, 4.3 mm, 3BA | 25 |
| JCTRR53 | Red Ring Terminal, 5.3 mm, 2BA | 25 |
| JCTRR64 | Red Ring Terminal, 6.4 mm, 0BA | 20 |
| JCTRTAB63 | Red Male Spade Tab Terminal, 6.3 mm | 50 |
| JCTRBU40 | Red Male Bullet Terminal, 4.0 mm | 50 |
| JCTRBR40 | Red Female Bullet Receptacle, 4.0 mm | 50 |
| Total | 400 |
| SKU | Description | Quantity |
|---|---|---|
| JCTBFS63 | Blue Female Spade Terminal, 6.3 mm | 50 |
| JCTBFS63FI | Blue Fully Insulated Female Spade Terminal, 6.3 mm | 50 |
| JCTBBC | Blue Butt Connector, 4.0 mm | 50 |
| JCTBR53 | Blue Ring Terminal, 5.3 mm, 2BA | 30 |
| JCTBR64 | Blue Ring Terminal, 6.4 mm, 0BA | 30 |
| JCTBR84 | Blue Ring Terminal, 8.4 mm, 5/16 inch | 20 |
| JCTBPB63 | Blue Piggyback Terminal, 6.3 mm | 20 |
| JCTBTAB63 | Blue Male Spade Tab Terminal, 6.3 mm | 50 |
| JCTBBU50 | Blue Male Bullet Terminal, 5.0 mm | 50 |
| JCTBBR50 | Blue Female Bullet Receptacle, 5.0 mm | 50 |
| Total | 400 |
| SKU | Description | Quantity |
|---|---|---|
| JCTYFS63 | Yellow Female Spade Terminal, 6.3 mm | 15 |
| JCTYFS95 | Yellow Female Spade Terminal, 9.5 mm | 15 |
| JCTYFS63FI | Yellow Fully Insulated Female Spade Terminal, 6.3 mm | 20 |
| JCTYBC | Yellow Butt Connector, 5.5 mm | 30 |
| JCTYR43 | Yellow Ring Terminal, 4.3 mm, 3BA | 20 |
| JCTYR53 | Yellow Ring Terminal, 5.3 mm, 2BA | 20 |
| JCTYR64 | Yellow Ring Terminal, 6.4 mm, 0BA | 30 |
| JCTYR84 | Yellow Ring Terminal, 8.4 mm, 5/16 inch | 30 |
| JCTYR105 | Yellow Ring Terminal, 10.5 mm, 3/8 inch | 20 |
| JCTYR130 | Yellow Ring Terminal, 13.0 mm, 1/2 inch | 10 |
| JCTYTAB63 | Yellow Male Spade Tab Terminal, 6.3 mm | 20 |
| JCTYBU50 | Yellow Male Bullet Terminal, 5.0 mm | 15 |
| JCTYBR50 | Yellow Female Bullet Receptacle, 5.0 mm | 15 |
| Total | 260 |
Ratings vary according to the connector type and insulation colour.
| Terminal type | Material | Insulation | Plating | Temperature | Maximum voltage |
|---|---|---|---|---|---|
| Quick-disconnect terminals | Brass with tubular copper sleeve | Vinyl | Tin | -10°C to +75°C | 300V |
| Ring terminals | Copper | Vinyl | Tin | -10°C to +75°C | 600V |
| Butt connectors | Brass | Vinyl | Tin | -10°C to +75°C | 600V |
| Insulation colour | Quick disconnect | Ring terminals | Butt connectors |
|---|---|---|---|
| Red | 10A | 19A | 19A |
| Blue | 15A | 27A | 27A |
| Yellow | 24A | 48A | 48A |
Crimp terminals are also commonly known as crimp connectors, connector terminals, electrical crimps and wire terminals.
