How Cable Ties Are Made: From Nylon 66 to the Ratcheting Zip Tie

Quick summary: Cable ties look simple, but they rely on a tough Nylon 66 material, precision injection moulding, and a small locking pawl that grips the teeth on the strap. In this guide we cover how the nylon is made, how ties are moulded at scale, how the ratchet works, and why tooth design and consistency matter.

• What Nylon 66 is and why it is used for cable ties
• How injection moulding turns nylon pellets into finished ties
• How the teeth and pawl system locks and holds load
• Why tooth pitch varies and what it can tell you about design
• How different cable tie types are made for different industries

Introduction

Cable ties are used everywhere for bundling, fixing, holding and organising. They were first created to speed up cable lacing in demanding environments, and they have since become one of the most widely used fasteners in the world. What makes them so successful is that they combine simple handling with a clever one way locking mechanism, all produced in huge volumes at a very low unit cost.

A typical cable tie is made up of a flexible strap with moulded teeth and a locking head. As the tail passes through the head, the internal pawl clicks over the teeth and holds the strap in place. Each pull tightens the loop further, and once it is locked it will not slide back.

In this article we will look at how cable ties are made from start to finish. We will begin with Nylon 66, move through injection moulding, and then break down the ratchet design that makes a cable tie hold. We will also touch on tooth pitch, consistency, and why some ties feel smoother and stronger than others.

Materials: Nylon 66, the backbone of cable ties

Most standard cable ties are made from Nylon 66, a strong engineering plastic chosen for its balance of strength, toughness and heat resistance. Nylon 66 is made from two building blocks that join to form long polymer chains. Those chains give the finished tie its strength while still allowing enough flexibility to tighten cleanly around a bundle.

The nylon is produced through a controlled reaction that forms the polymer and releases water. By managing heat and removing that water during processing, manufacturers can drive the reaction towards building longer chains. The final Nylon 66 is then formed into pellets, which are supplied to moulding factories as the raw material for cable ties.

Different grades of ties use additives to suit different jobs. Black ties often include carbon black to improve UV resistance. Other ties use stabilisers for higher heat environments or longer outdoor exposure. The core idea stays the same: a quality Nylon 66 resin that can be moulded consistently and performs well in real world use.

Injection moulding: turning nylon into finished ties

Once the Nylon 66 pellets arrive at the factory, the next step is injection moulding. The pellets are dried first to reduce moisture issues during processing, then melted in an injection moulding machine. The molten nylon is injected at high pressure into a multi cavity steel mould. Each cavity forms a complete tie, including the strap, the teeth and the locking head.

Cable ties are long, thin parts, so the mould has to fill quickly and evenly before the nylon cools. That demands good tooling design, stable processing settings, and consistent temperature control. Once filled, the tie cools fast, the mould opens and the finished ties are ejected automatically onto a conveyor ready for checking and packing.

The scale of production is impressive. With a short cycle time and a high cavity mould, it is possible to produce huge volumes from a single machine running continuously. That is one reason cable ties are so widely available: they are designed for fast, repeatable manufacturing.

Packing matters too. Nylon 66 naturally absorbs moisture from the air. If ties become too dry they can feel stiff and may be more prone to brittleness in cold conditions. If they absorb too much moisture, performance can change in other ways. Good manufacturers aim for a sensible balance so ties stay flexible enough to install but still meet their declared strength.

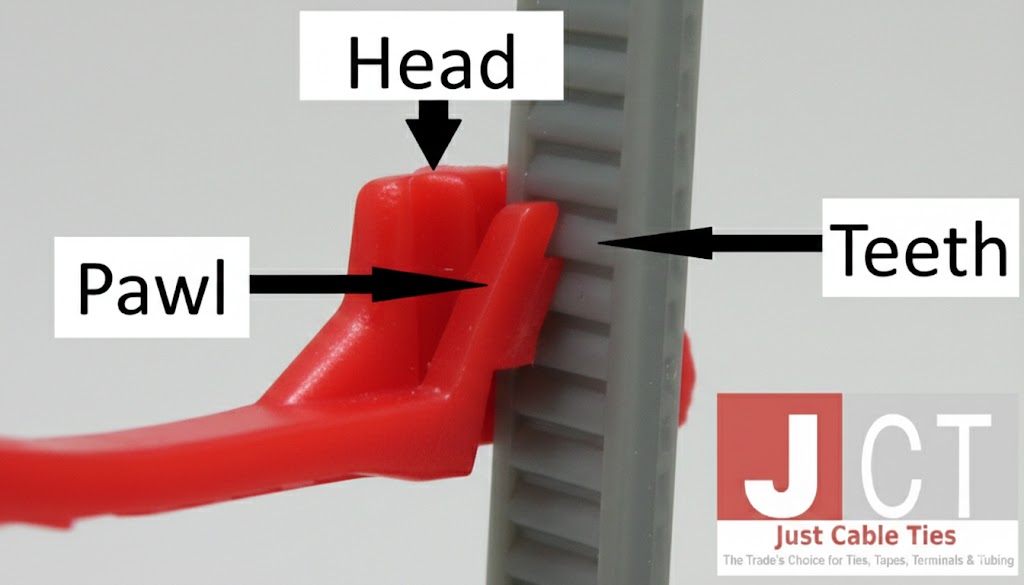

The locking mechanism: teeth and pawl

The main reason a cable tie works so well is the ratchet design. The strap has a row of teeth moulded along one side. Inside the head is a small flexible pawl, sometimes called the locking tongue. When you feed the tail through the head and pull, the pawl flexes up over the teeth as the strap moves forward, then drops into the next gap, stopping the strap from slipping back.

This one way movement is what gives cable ties their speed and reliability. Each pull tightens the loop further. Once you stop pulling, the pawl sits against the teeth and holds the tie at that exact position. In most standard ties, the only practical way to remove them is to cut them. Other designs add release features, but the basic tooth and pawl principle remains the foundation of the common tie.

Tooth pitch: is it always the same?

People often ask whether cable ties have a standard teeth per inch count. In reality, tooth pitch is a design choice and it can vary between manufacturers and between sizes. Many common ties fall into a similar range, but there is no single universal tooth count.

Wider, heavier duty ties often use a larger tooth profile, which can mean fewer teeth along the same length. That is because the tooth and the locking pawl must resist higher loads, and a more robust profile can help reduce the risk of stripping under strain.

The important point is not the tooth count on its own, but how cleanly the teeth are moulded and how well the pawl engages with them. A tie that feeds smoothly and locks confidently is usually the result of good tooling, consistent nylon, and accurate moulding rather than a specific tooth number.

Strength and quality in real use

Cable ties are typically rated using loop tensile strength, which is the load the tie can withstand in a looped and locked state before failure. Failure can be the strap breaking or the head slipping. In practice, the head is often the critical area because that is where the pawl and teeth do the work.

Quality ties tend to feel consistent, tighten smoothly, and lock without hesitation. That usually comes down to material quality and consistent moulding. Real world performance is also affected by environment. Temperature, UV exposure and ageing all influence nylon behaviour over time, which is why selecting the right tie type for the job matters.

Different types of cable ties and why they exist

Over time, cable ties have evolved to suit specific industries and applications. Some are designed for identification, some for fixing to a surface, and some for specialist environments where traceability or material performance is important.

For example, metal detectable cable ties are widely used in food and pharmaceutical settings where foreign object detection is part of routine safety control. eyelet cable ties are designed to be screw fixed to panels or surfaces for cleaner routing. marker ties help with cable identification where labelling and traceability matter. For harsh environments, stainless steel cable ties offer a tougher alternative where nylon may not be suitable.

Even with these variants, the same core idea runs through most designs: fast installation, consistent locking, and reliable holding power.

Conclusion

Cable ties are a good example of a simple product that relies on a lot of engineering detail. They start with Nylon 66 pellets, are formed through precision injection moulding, and rely on a tooth and pawl ratchet that locks quickly and holds load. Small differences in material quality and moulding accuracy can affect how a tie feeds, locks and performs over time.

Understanding how they are made helps explain why some ties feel stronger and more consistent than others. The next time you tighten a cable tie, it is worth remembering that behind that simple click is a carefully designed fastener produced at huge scale with a very specific job to do.
